Windows / Windshield Installation

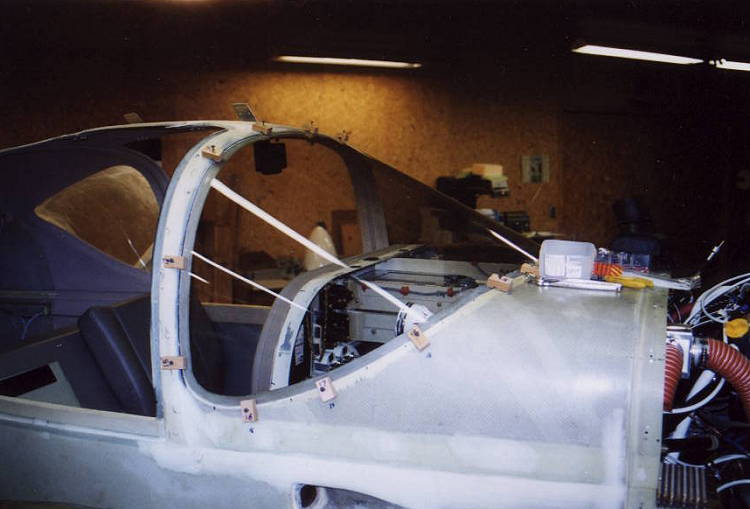

New windshield joggle - on the inside, so
windshield can be installed from outside.

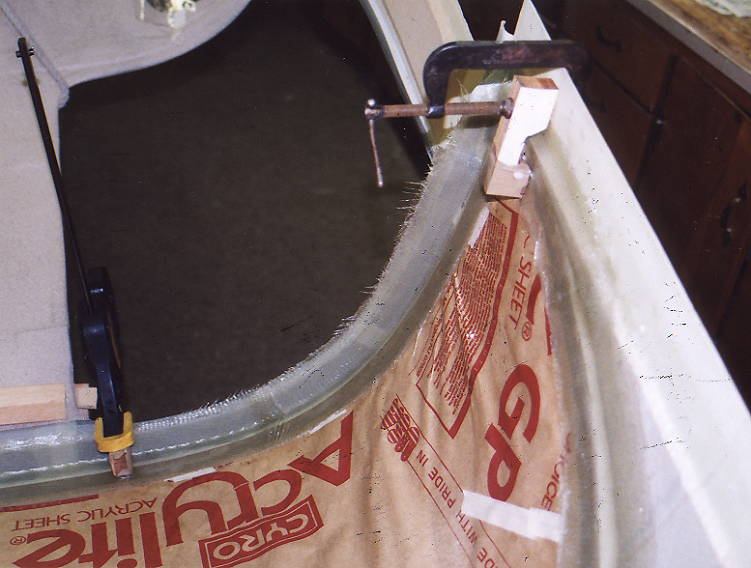

Clamps to hold windshield in place.
Used lightweight sandbags to hold it down.

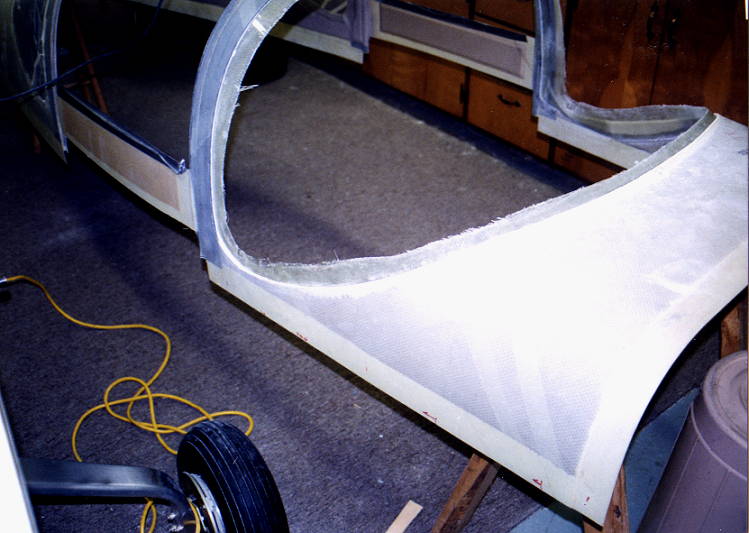

Making inside joggle to permit installing
windshield from the outside.
3-Ply layup - 3" side.  White area is micro
flox fillit for smooth transition. Windshield Edge
was covered with packaging poly tape.

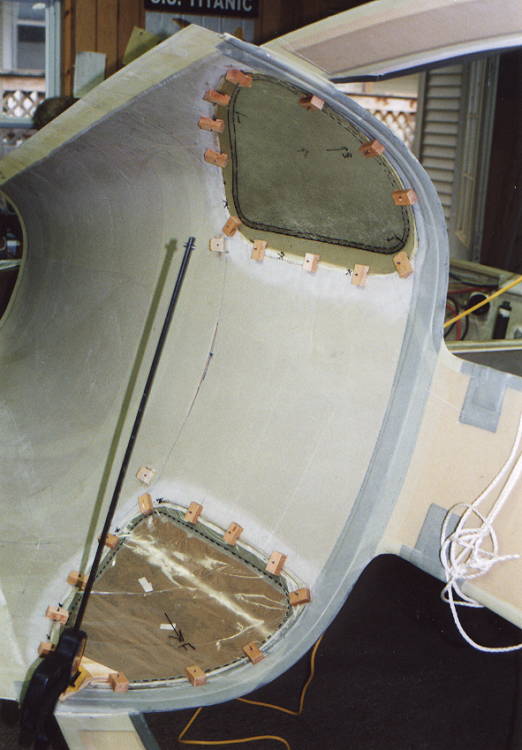

Rear window installation with wooden
clamping blocks & drywall screws
from the outside.

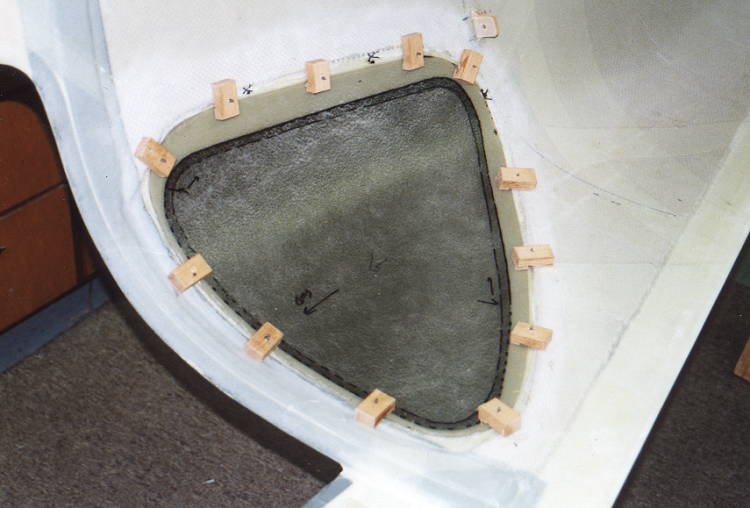

Window Installation  - big clamp at the
bottom is big overkill.

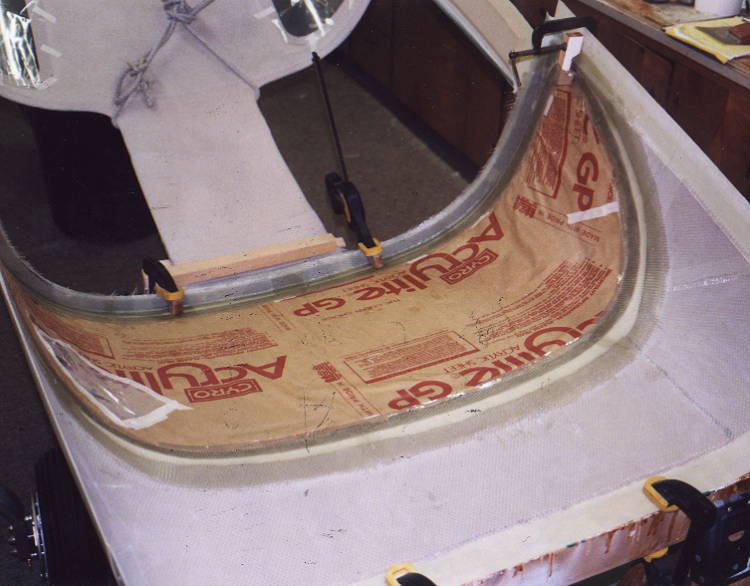

Preparation for windshield installation.
