In The Beginning

Pre-Finish +

Fuselage Dolly

Landing Gear

Main Gear

Drilling the Gear Mounting Holes

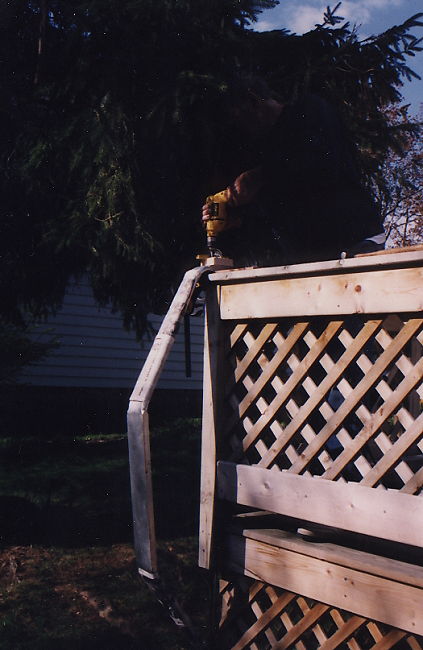

Drilling the gear mounting holes.

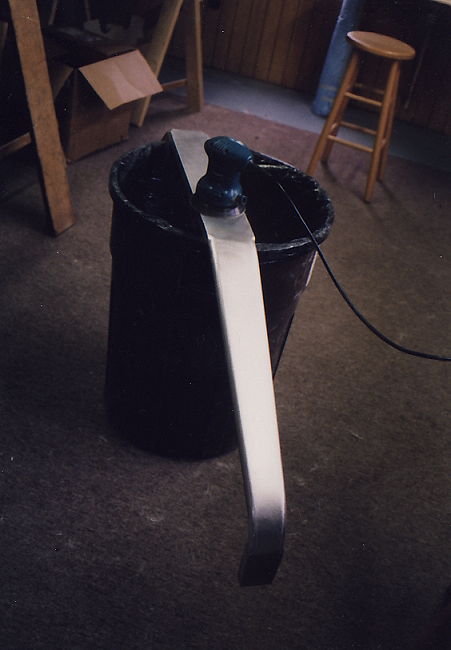

A bit of finish sanding.

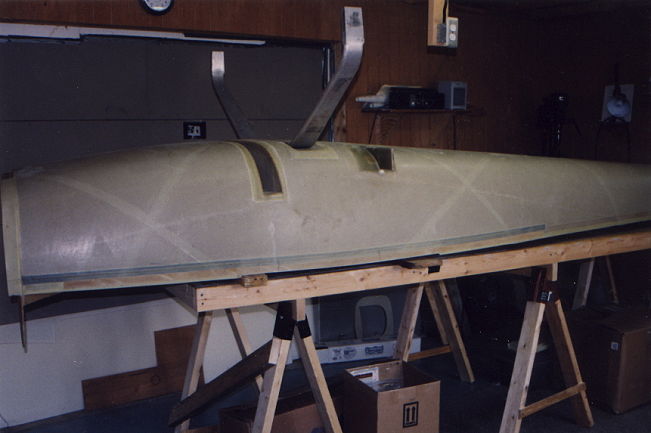

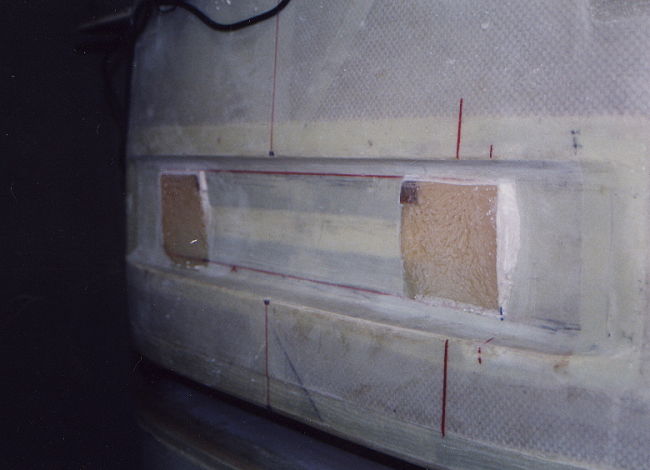

Mount points for the landing gear.

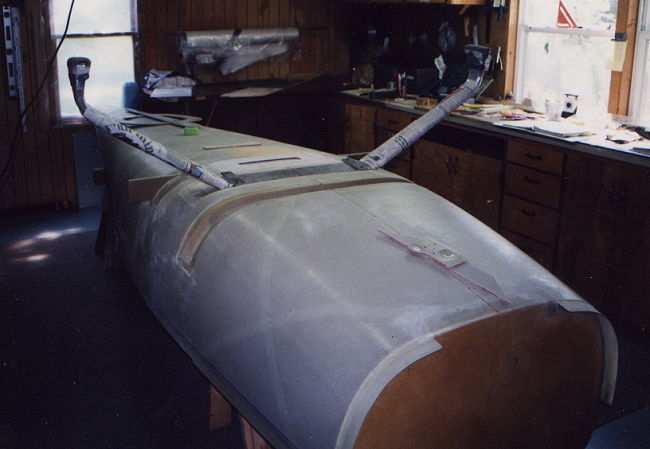

Definately the easiest way to mount the gear.

Main Gear in place.

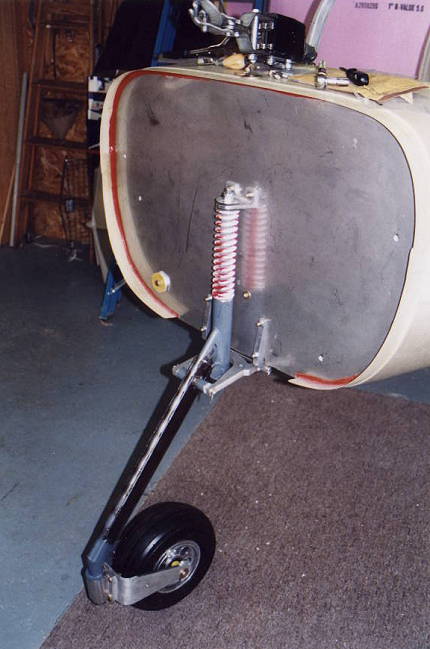

Nose Gear Installation.

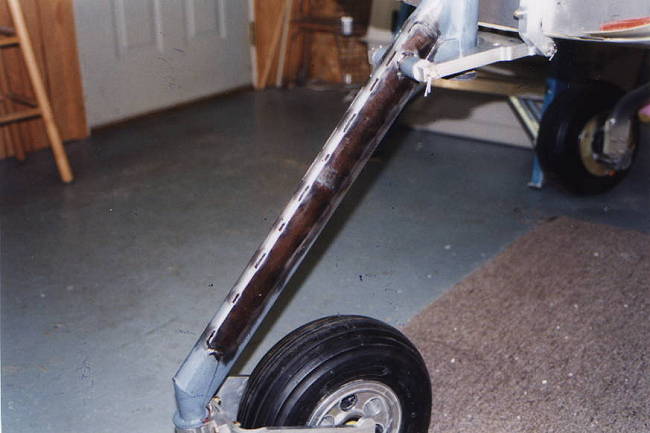

Reinforced nose gear.  Welded plates on

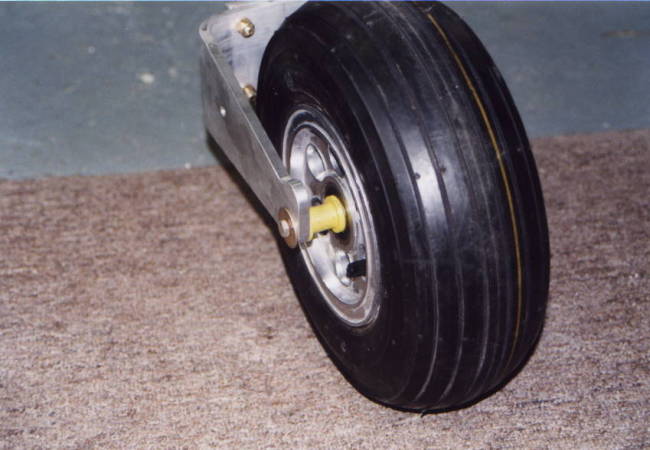

both side to stiffen the strut.		 Yellow Custom made spacer for nose gear.
 Just snugs up to the lower wheel bearing.

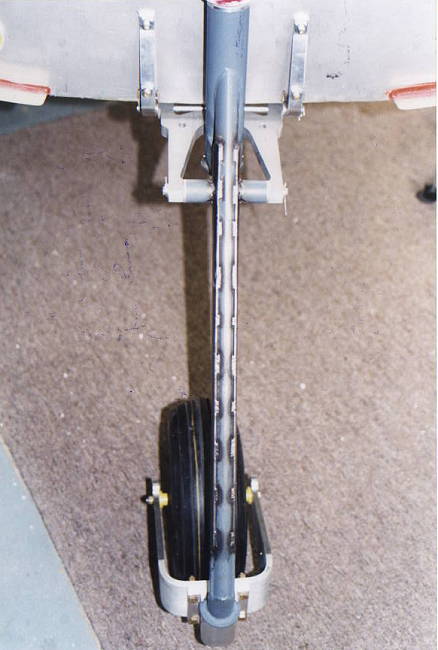

Front of Stich welded

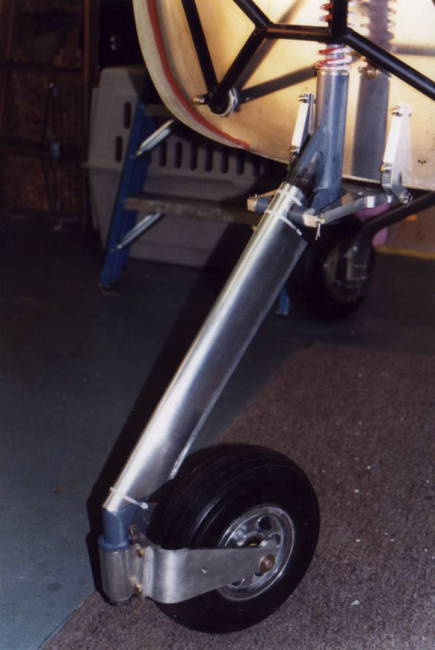

reinforcement plates.		 Gear Installed -
First Time / Last?		 Aluminum fairing to hide
ugly reinforcement plates.
