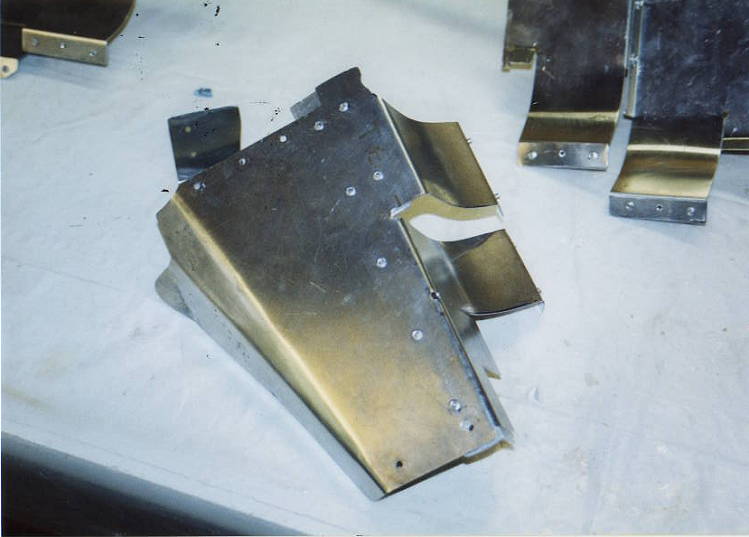

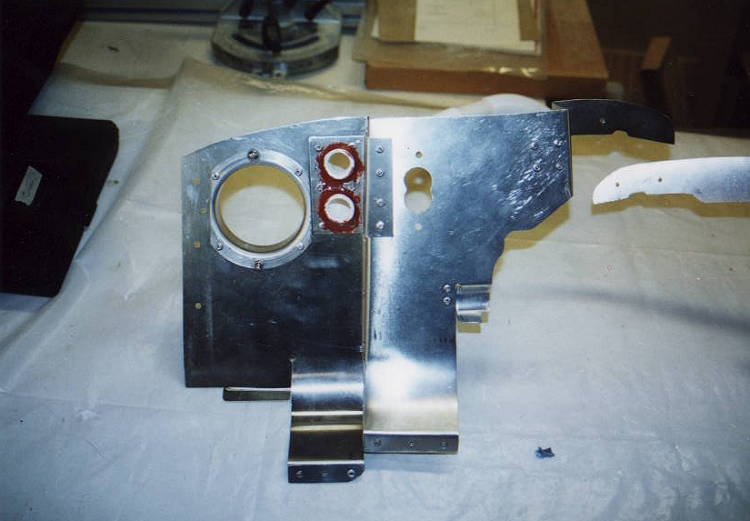

Left rear baffle assembly. |

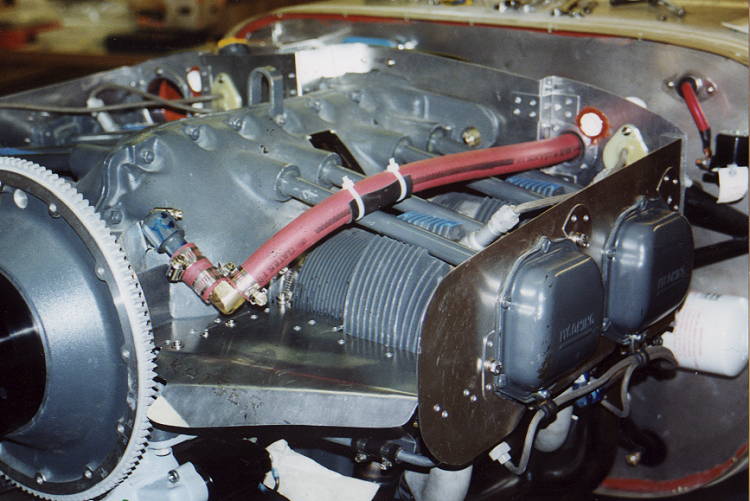

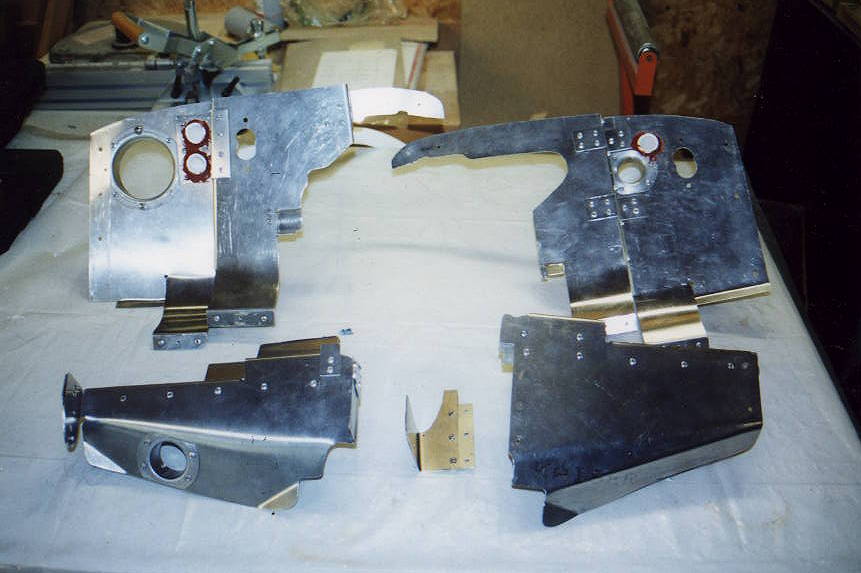

Front and rear baffle assembly. |
 |
 |

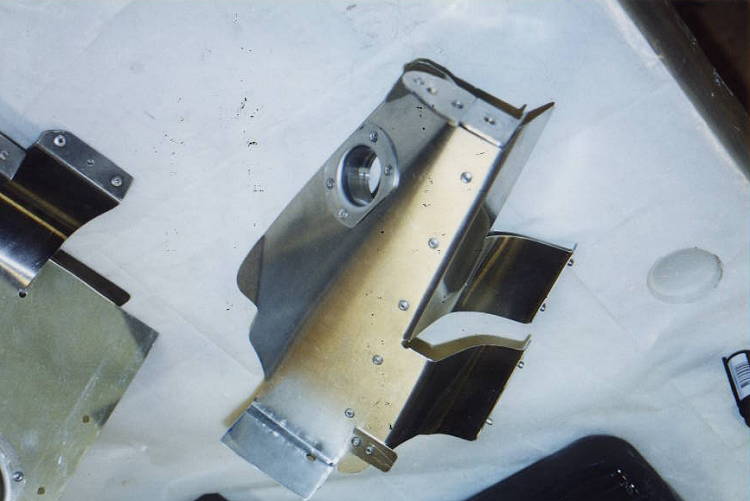

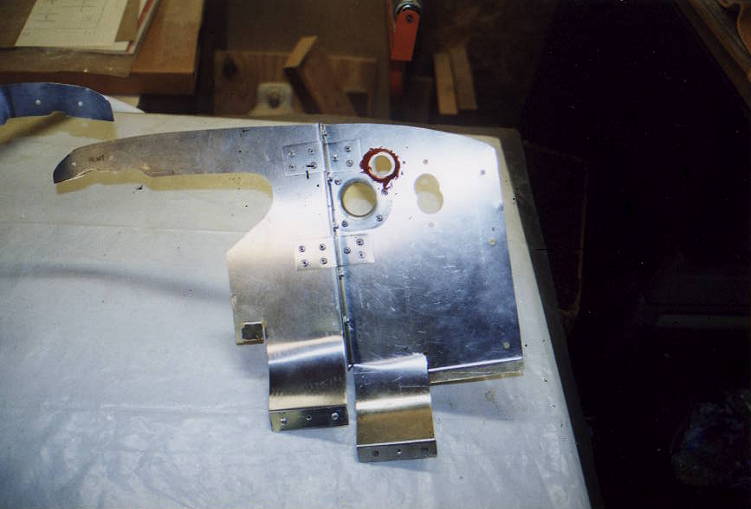

Right rear baffle as viewed from cockpit. |

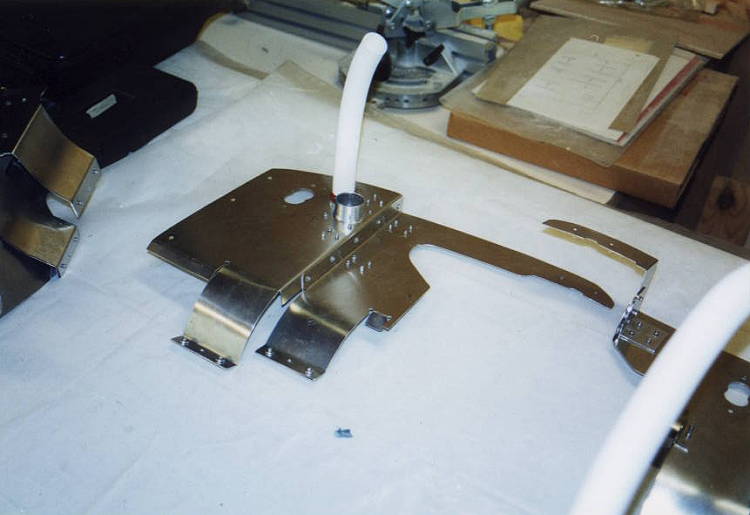

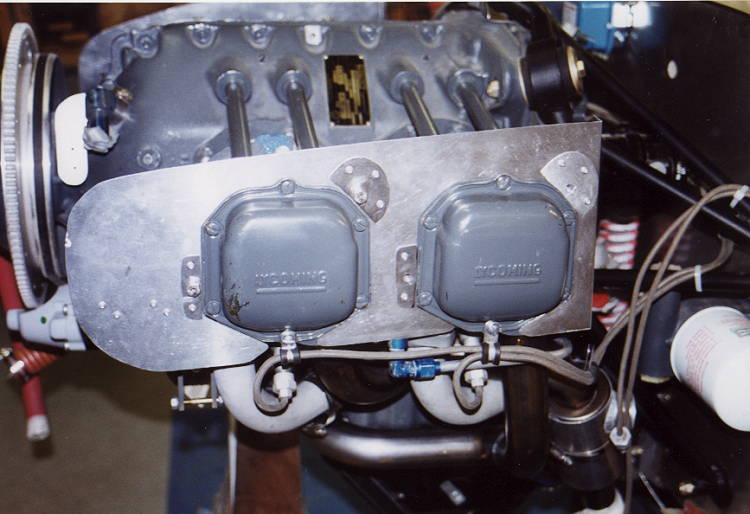

Left Front - Skin attached to angles underneath. |

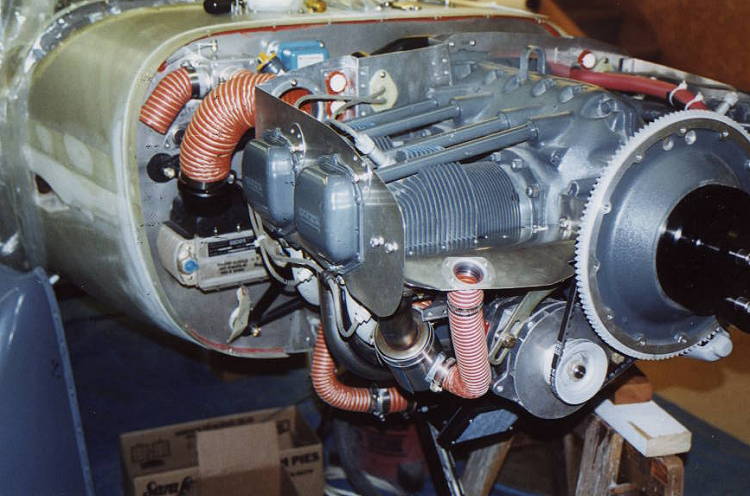

| The big hole is air to oil cooler. Two small holes are blast tubes. (magneto & gascolator) | |
 |
 |

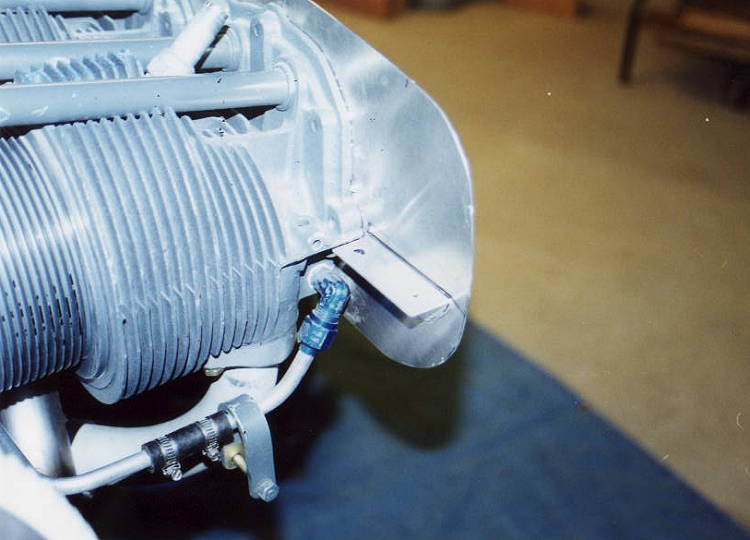

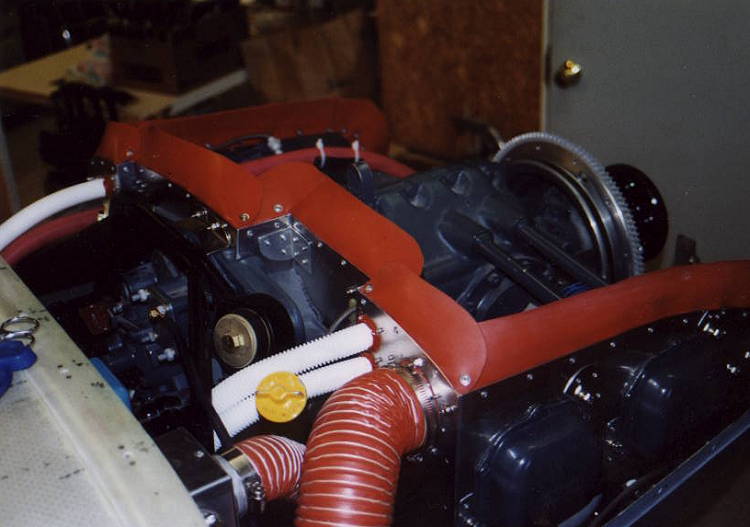

Left rear with blast tubes. |

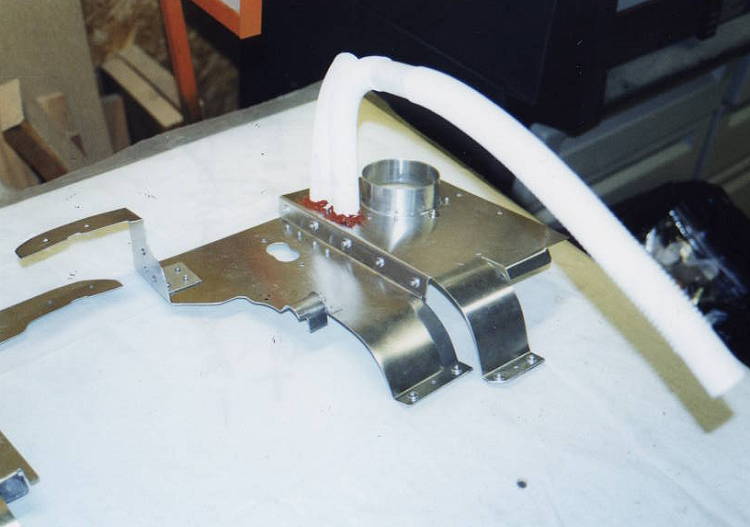

Right front baffle assembly. |
 |
 |

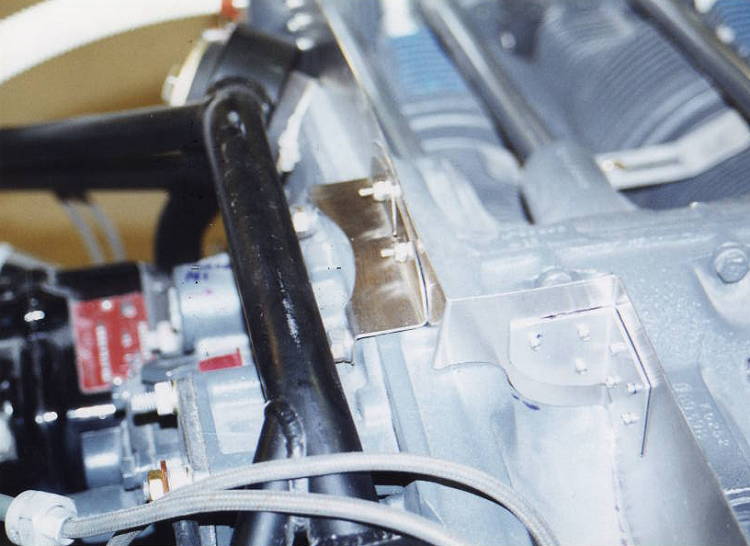

Right rear with blast tubes. |

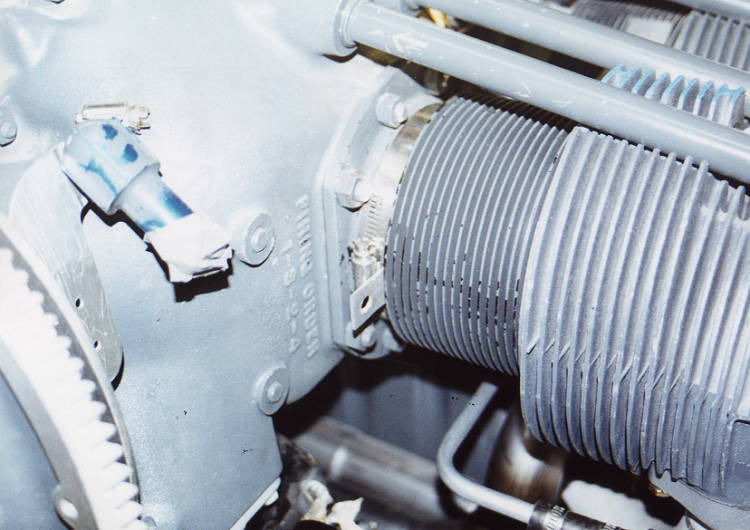

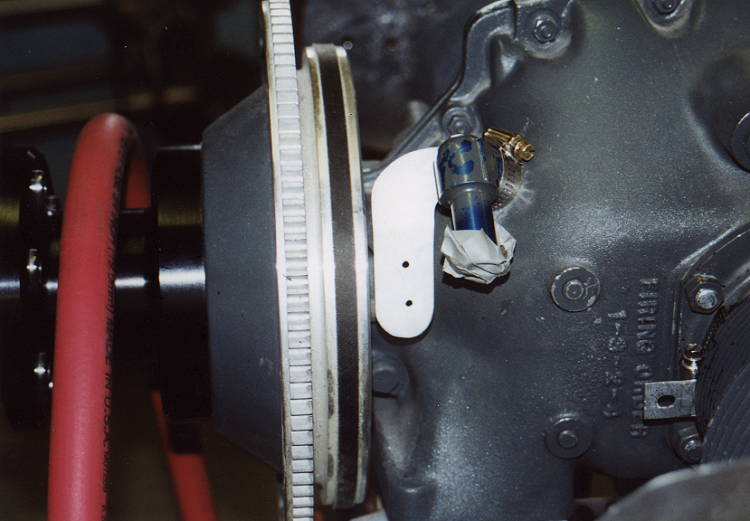

Baffle support bracket held by hose clamp. |
 |
 |
| Baffle support bracket - held in place by a hose clamp around the breather pipe outlet. |
Bracket to support both rear baffles. |
 |
 |
Baffle support bracket |
Assembled. |
 |
 |
Attachment bolt holes reinforced per RV6 plans. |
Assembled. |
 |
 |

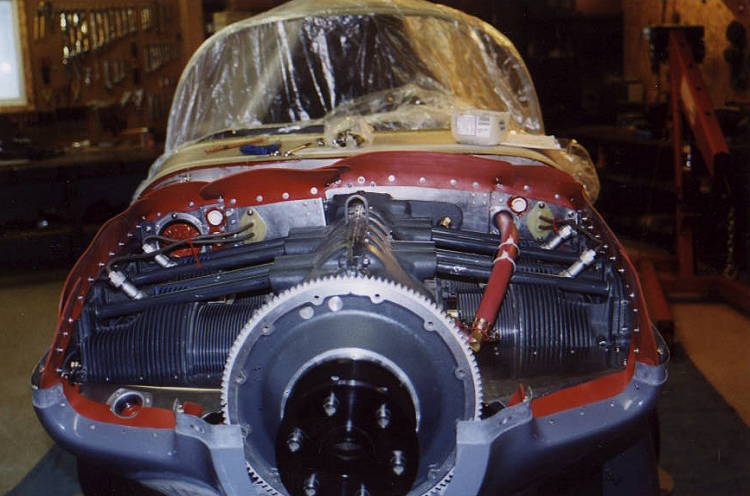

Completed front view. |
Baffling! (it was baffling!) |
