N247BR

Wing Tips - Installation (Right)


Wing Tip Install Installation of the wing tips should be made in conjunction with trial fitting of the ailerons.  Use the wing alignment jig to position the aileron and then fit the wing tip to the aileron.  The main part of fitting the wingtip was to sand and / or grind the inside of the wingtip surfaces to eliminate any extra thickness.  Careful sanding of the edges and surfaces should fit the wing tip without cutting.

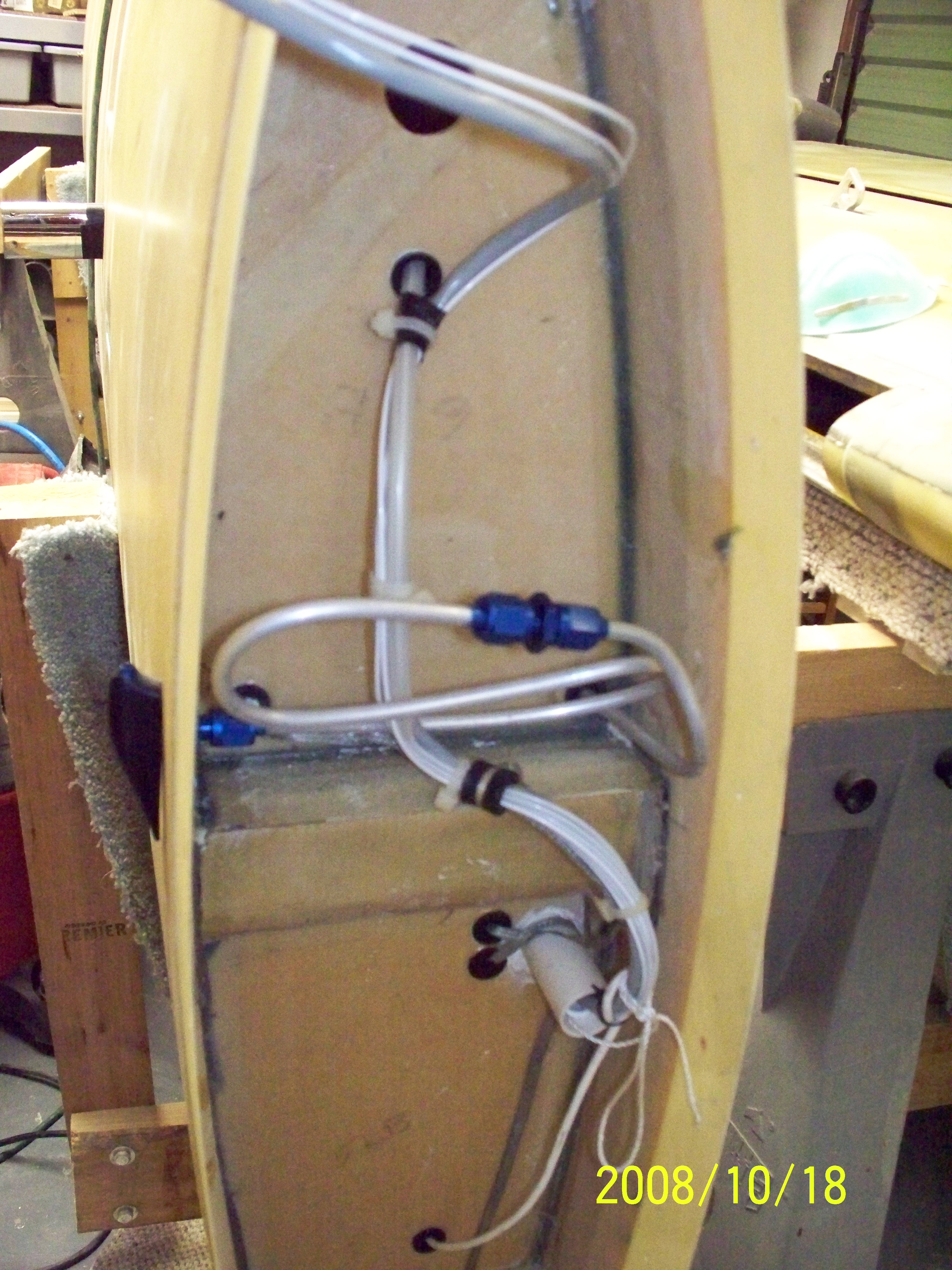

Wing Tip Install The wiring and fuel tank vent lines are shown.  The wiring is for the position lights, landing light and aileron trim.

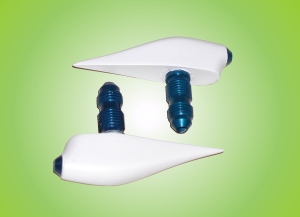

Wing Tip Install The left wing wiring and fuel vent routing.  The aerodynamic fuel vent (black on left/bottom side of the wing) is from http://www.aircraftextras.com/FuelVents.htm

Wing Tip Install

Wing Tip Install The wing tip is installed and bonded using an epoxy adhesive.  The small black item on the wing next to the wing tip is an aerodynamic fuel vent.  It is shaped like a teardrop with the opening facing the fron of the wing.  Really looks good after it is painted.
Wing Tip Install
Wing tip is installed, the joint has been smoothed and sanded.  A layer of lightweight glass has been applied, sanded, and prepared for finish.

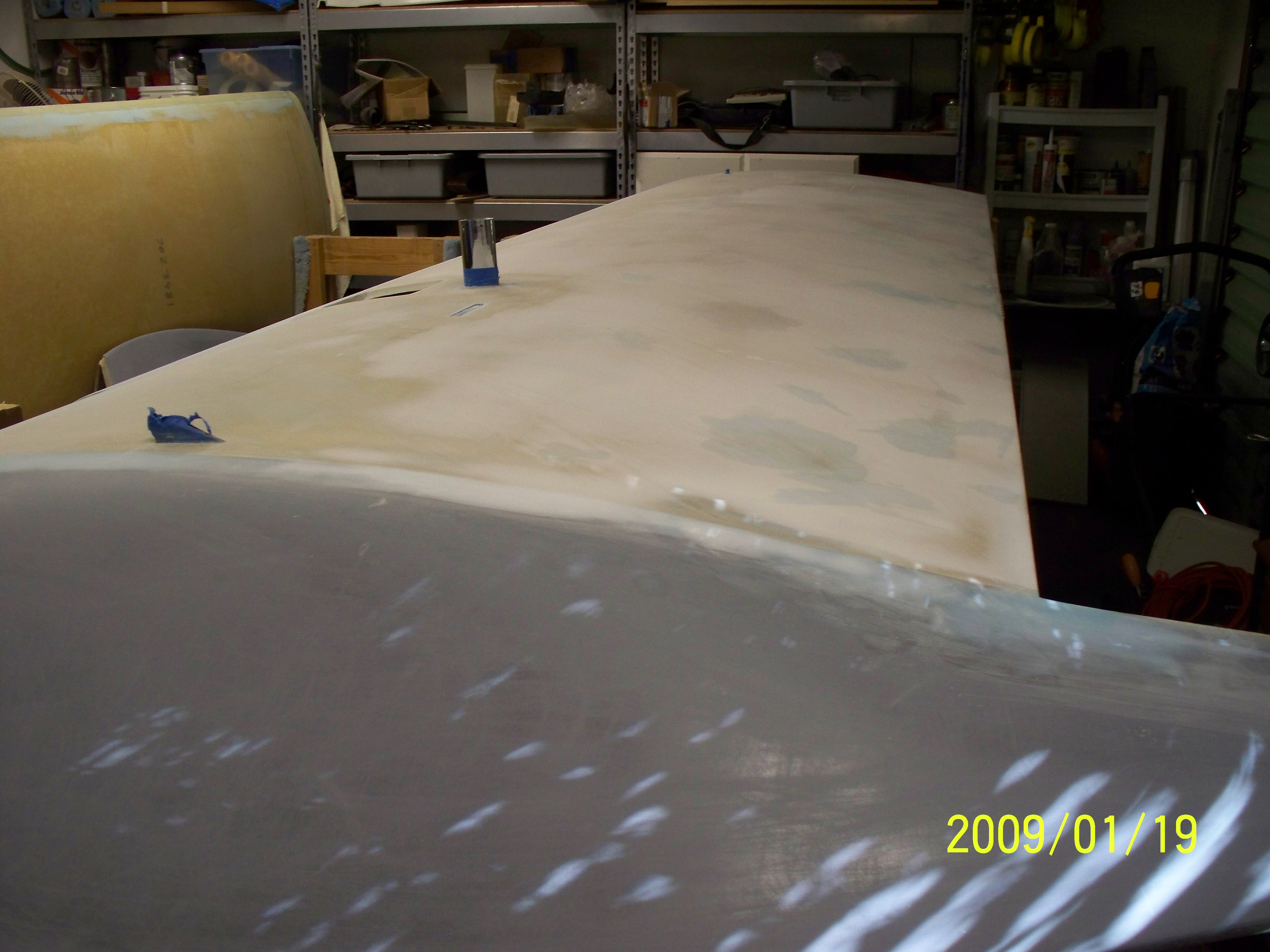

Wing Tip Install The Finished Wing Tip after filling and sanding with primer is seamless and ready to finish.
Wing Tip Install

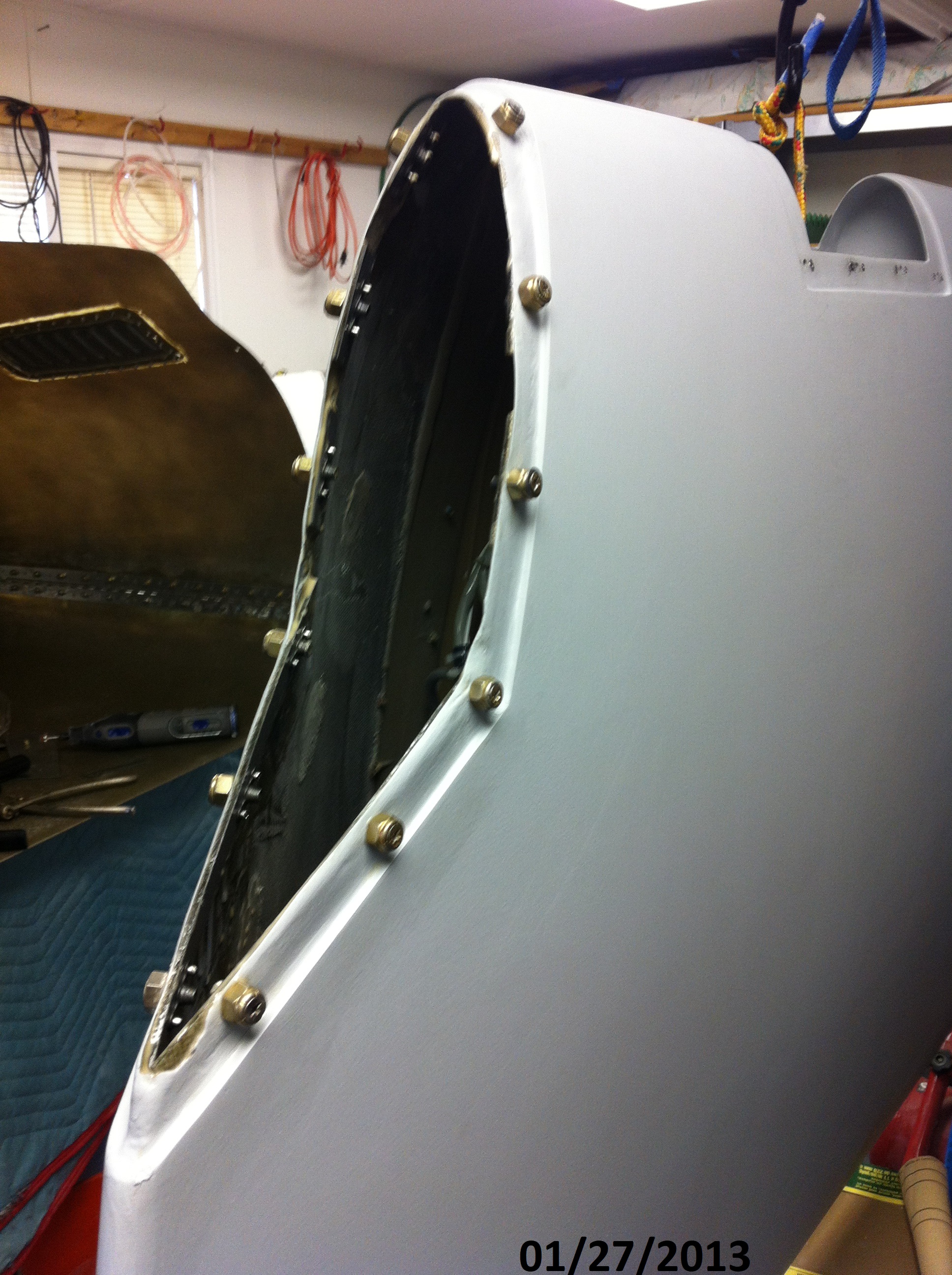

Wing has been sanded and primed.  Nut plates were installed by bonding fiberglass scraps with the nut plates rivited into place on the inside of the wing tip opening.  Used screws and spacers to clamp the nut plates into place.
Wing Tip Install

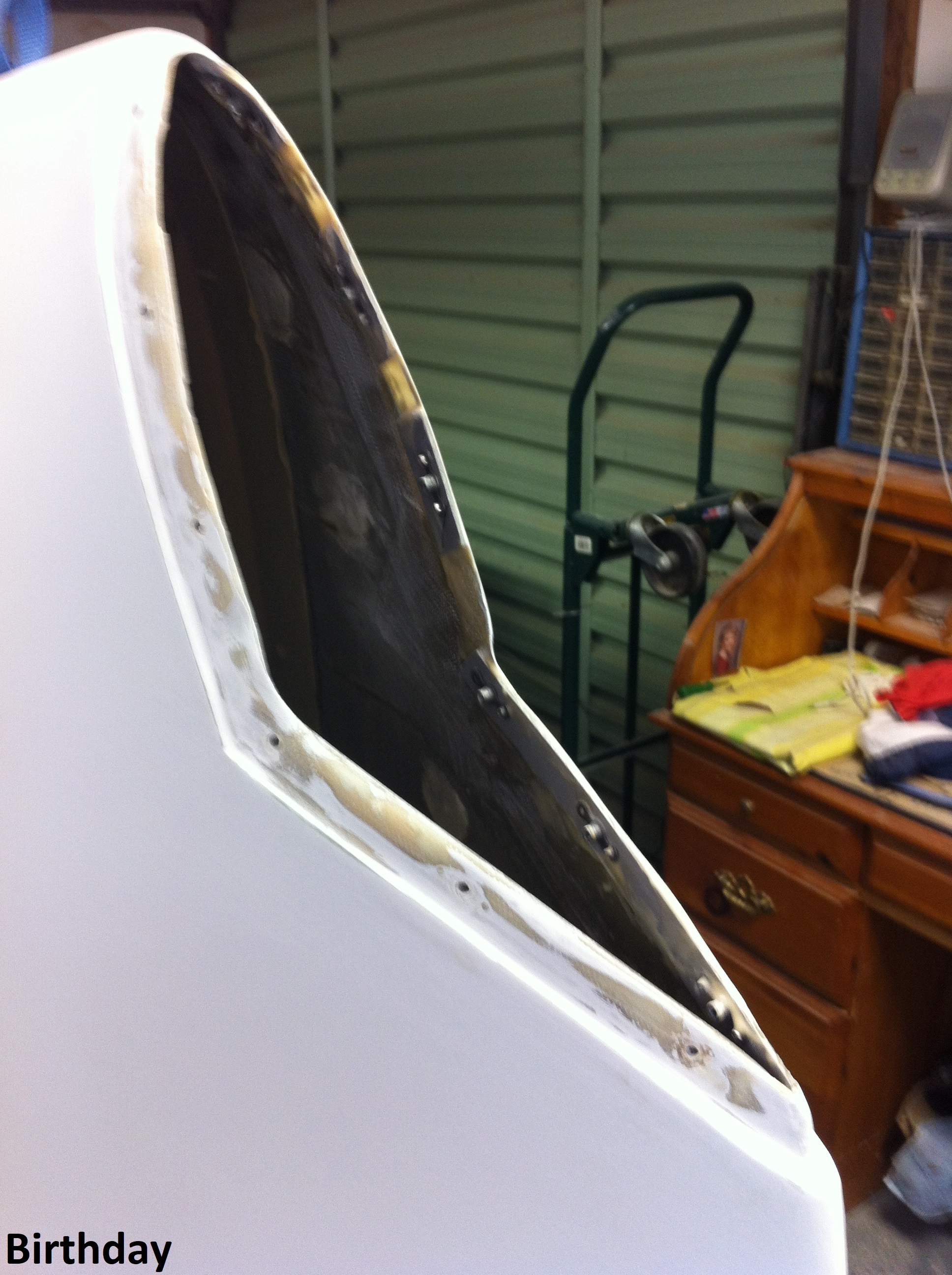

The completed nut plates have been installed and the opening has been cleaned up and the plexiglass checked for fit.
Wing Tip Install

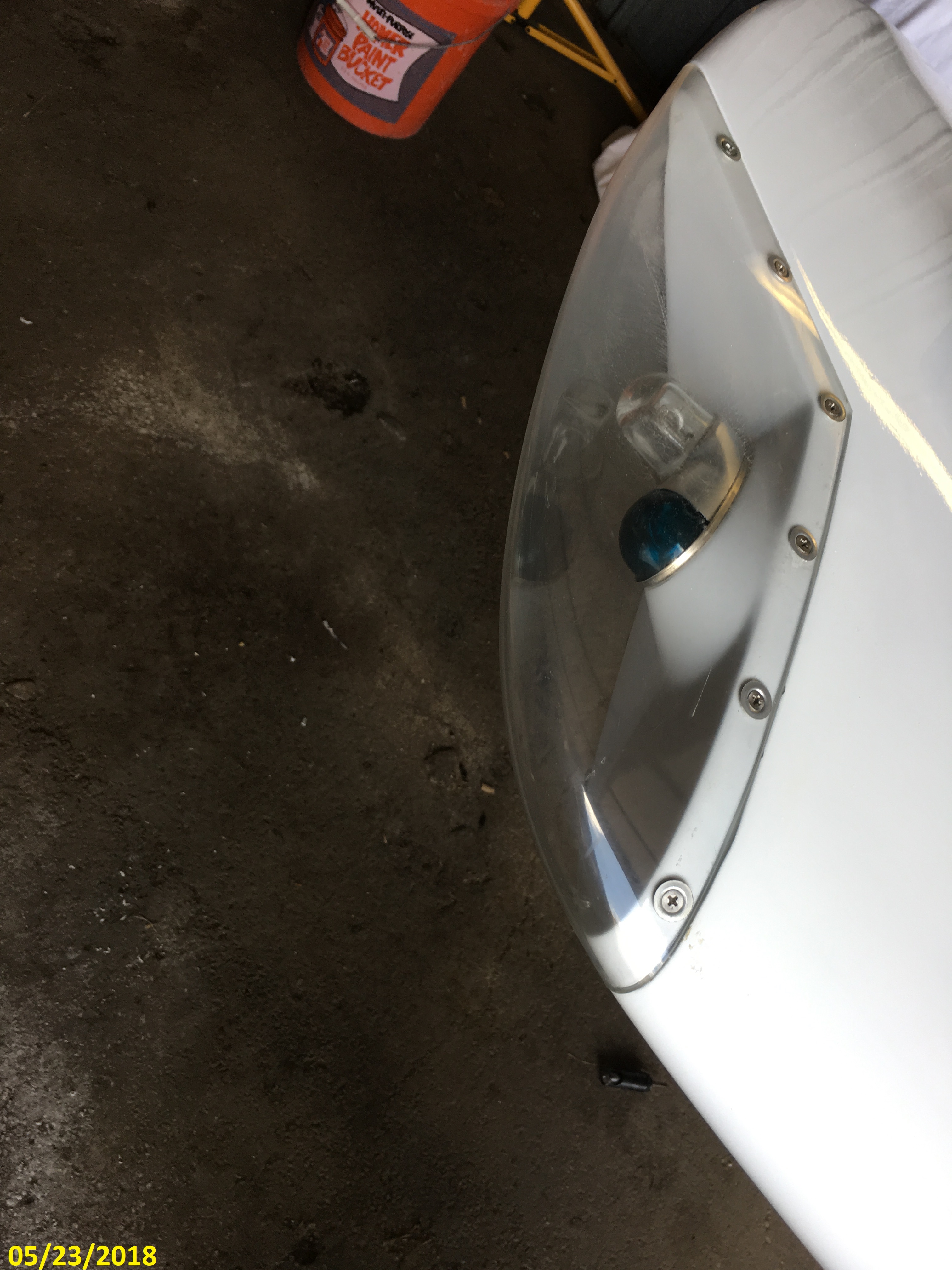

It's taken way too many years to get to this point with two attempts at painting and many, many road blocks along the way but the completed wing tip looks great.
