Rudder Pedals - 1 - Something Different

Rudder Pedals
My First attempt at custom rudder pedals.


I fabricated new rudder pedals from lengths of 3" by 2" aluminum angle and 1" by 1" angle.  These were cut and shapped to the desired size and riveted together.  The holes are for reducing the weight.  I will be having the steel framework powder coated before final installation.
I tried out the first set of rudder pedals shown above and didn't like lack of a positive feedback when on the brakes.  I saw the above Plastic Pedal in the Aircraft Spruce Catalog and decided to give them a try.  I fabricated my own backer plate and mounting from simple flat and angle aluminum.  These are a lot heavier that those provided with the kit but I feel much better about them and how they will holdup over time and use.  Note that the mount for the brake cylinder is a double bracket with a brass bushing.  I feel that this will prevent the eventual twisting and wearing out of the mounts.  They have a nice solid feel, are easy to work with those big shoes, and look good too.



Rudder Pedals Rudder Pedals
A search of the Aircraft Spruce site turned up the above rudder pedals which I modified to add the pivot mount and cable connections. The result is a much more substantial rudder pedal that gives a posivite tactile feel when applying the brakes.
Rudder Pedals Rudder Pedals

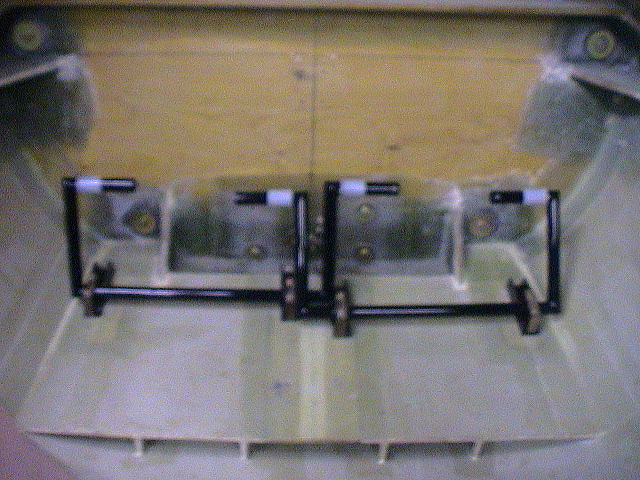

The Rudder Pedal assembly has
been powder coated.

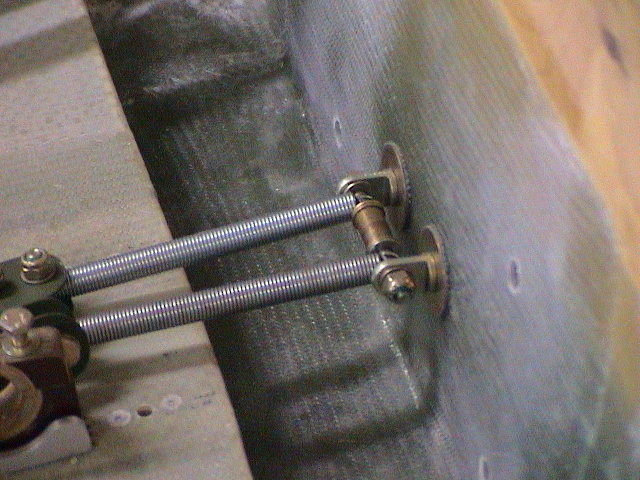

Rudder return springs are attached
to firewall.
Rudder Pedals Rudder Pedals

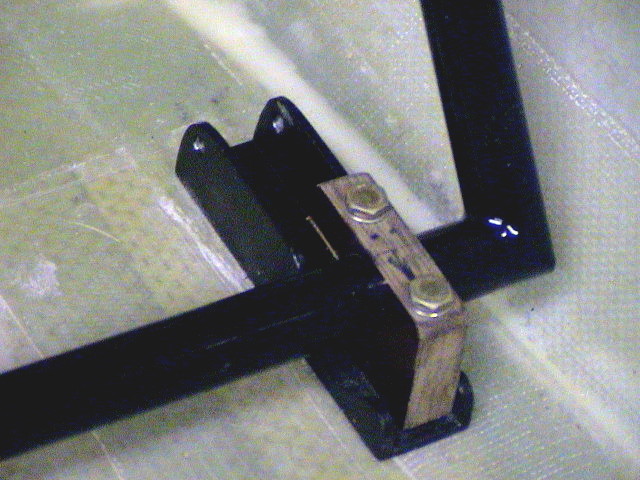

Mounting block was redesigned to
provide for dual mount for brakes.

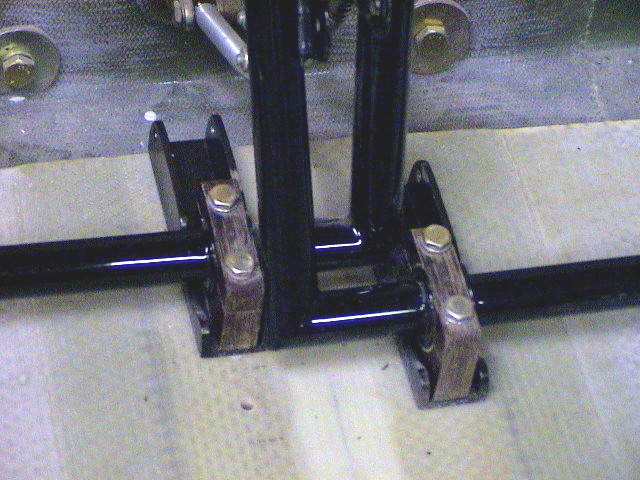

The center mounting points were
also redone.
Rudder Pedals Rudder Pedals

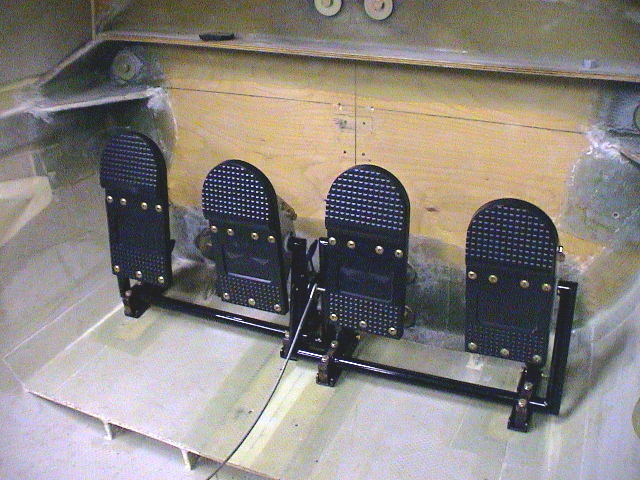

The redesigned pedals have now been
mounted.  Look pretty good too.

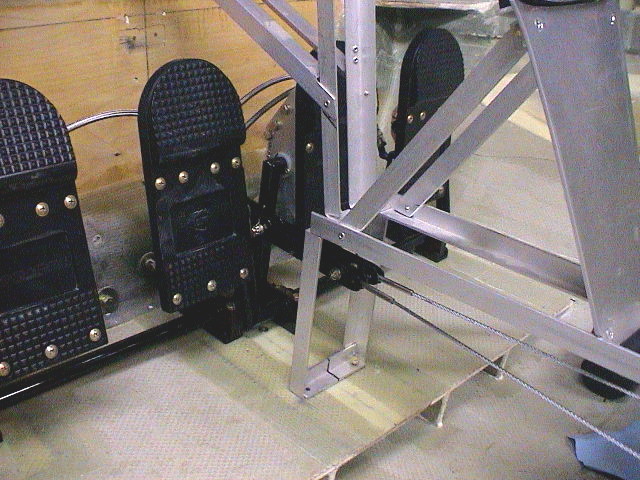

The framework for the center console
is being installed along with cables.
Rudder Pedals Rudder Pedals

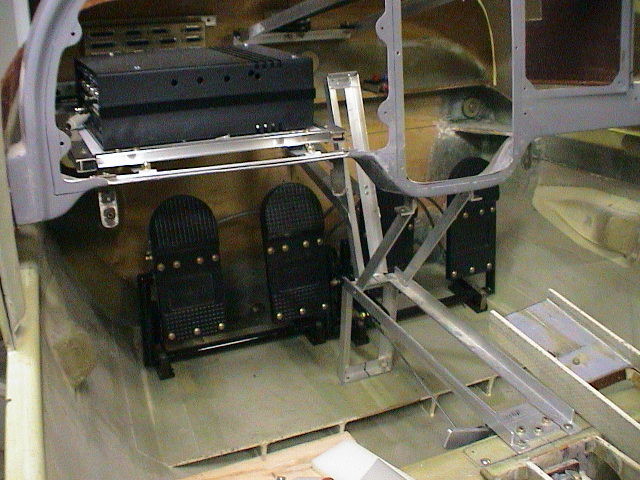

How they look with instrument panel
in place.

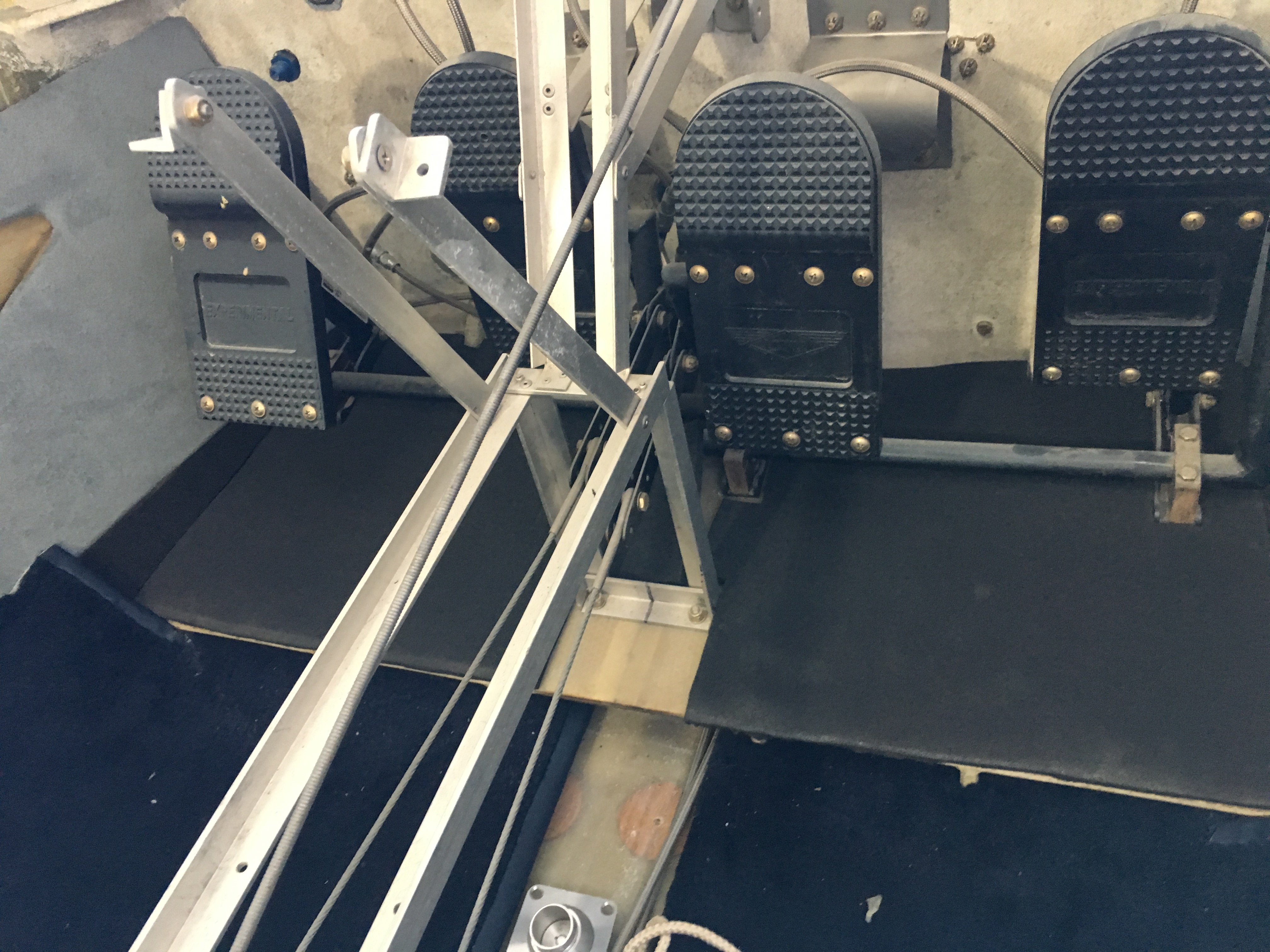

 Addition of carpet and upholstry is started but there is still much to be done in the area.
