Firewall Adding Components

Firewall

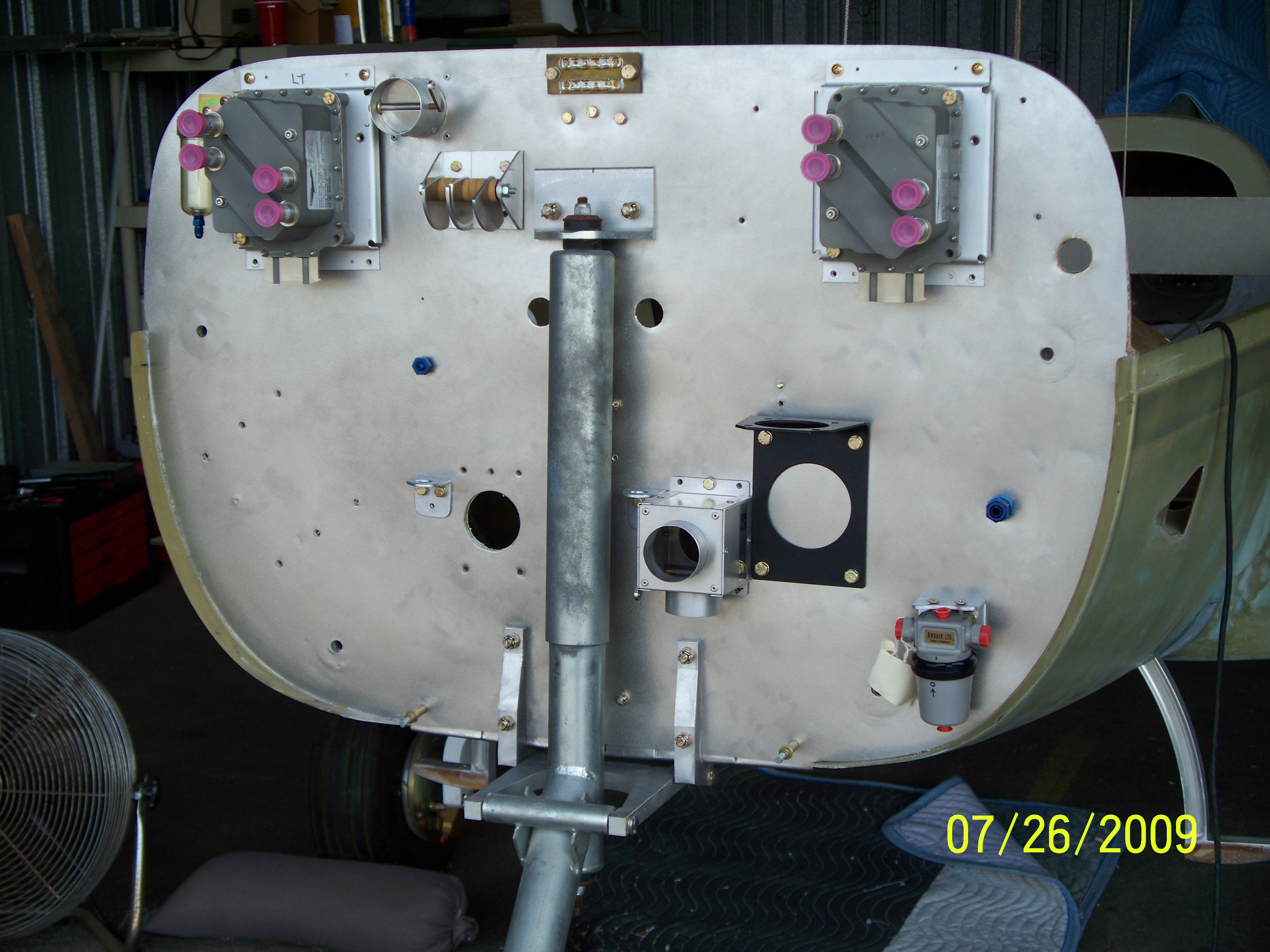

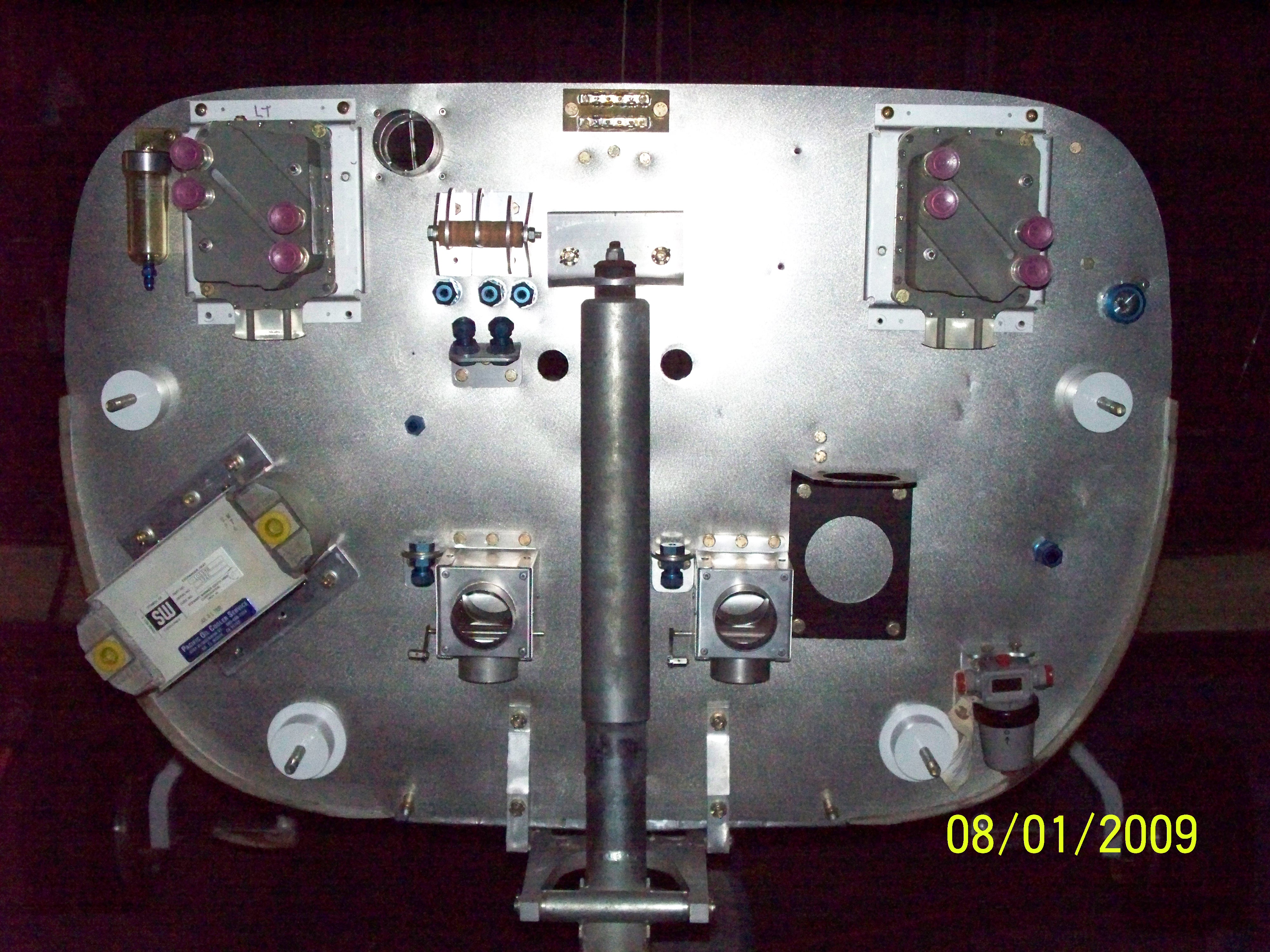

 I have started the process of mounting all of the components on the firewall.  So far the ground tabs, FADEC coild, oil filter mount, gas colator, and opening for heater air.
Firewall
 I have continued to mount additional components including the brake fluit resivoir, more air boxes, heater control cables, and the oil cooler.

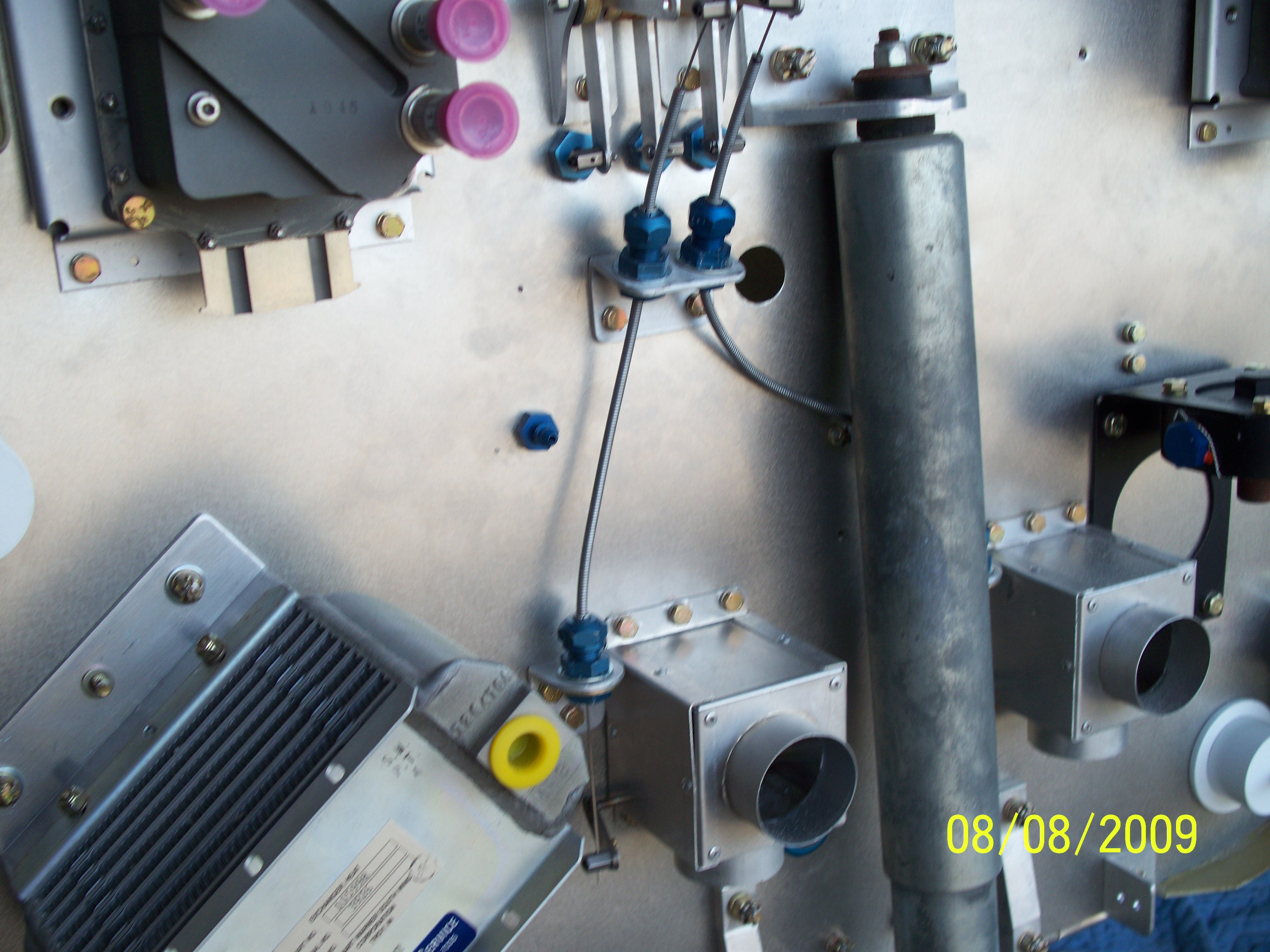

Below you can see the control cables for the heater boxes and holes for the FADEC wiring cables.

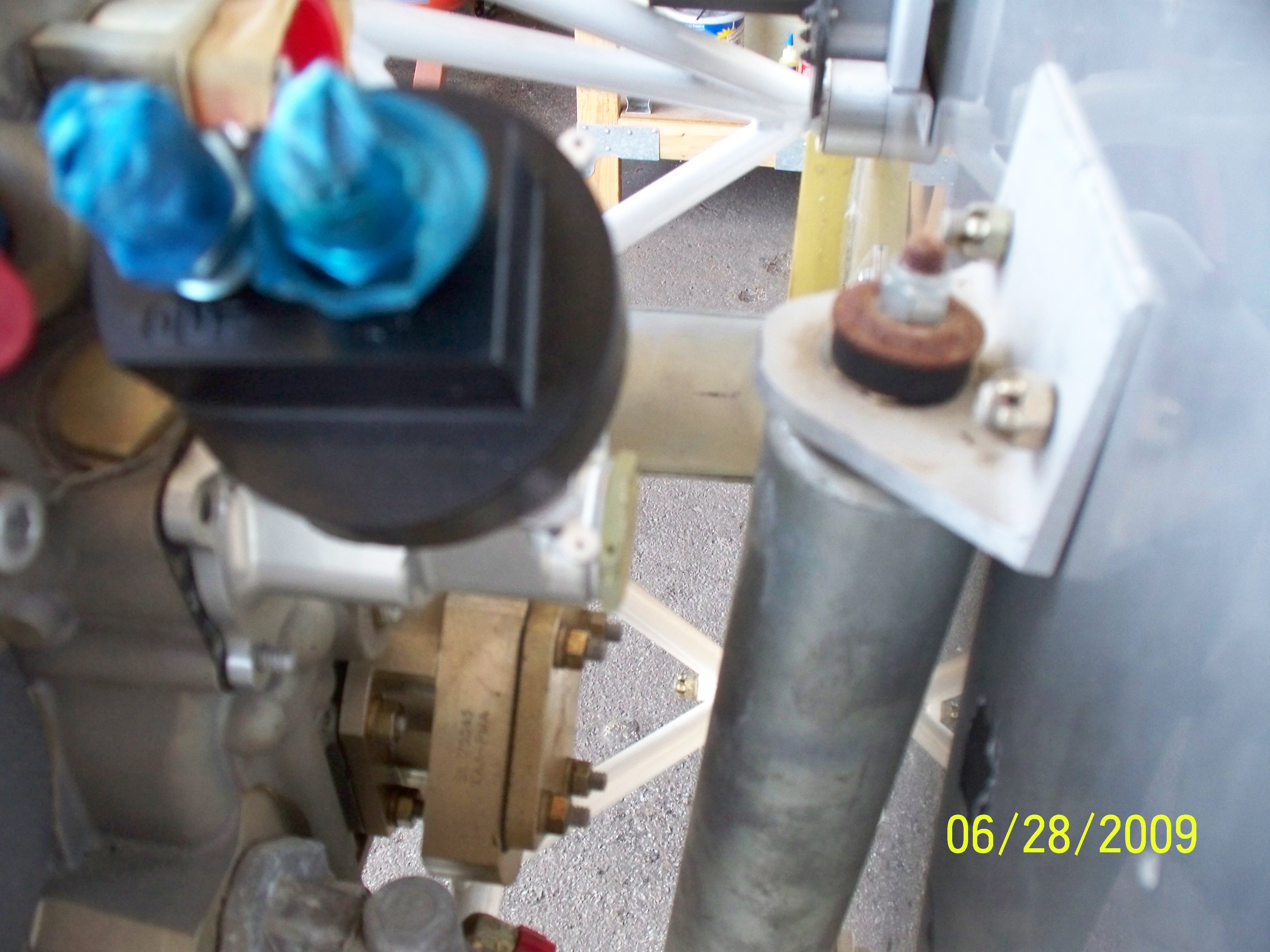

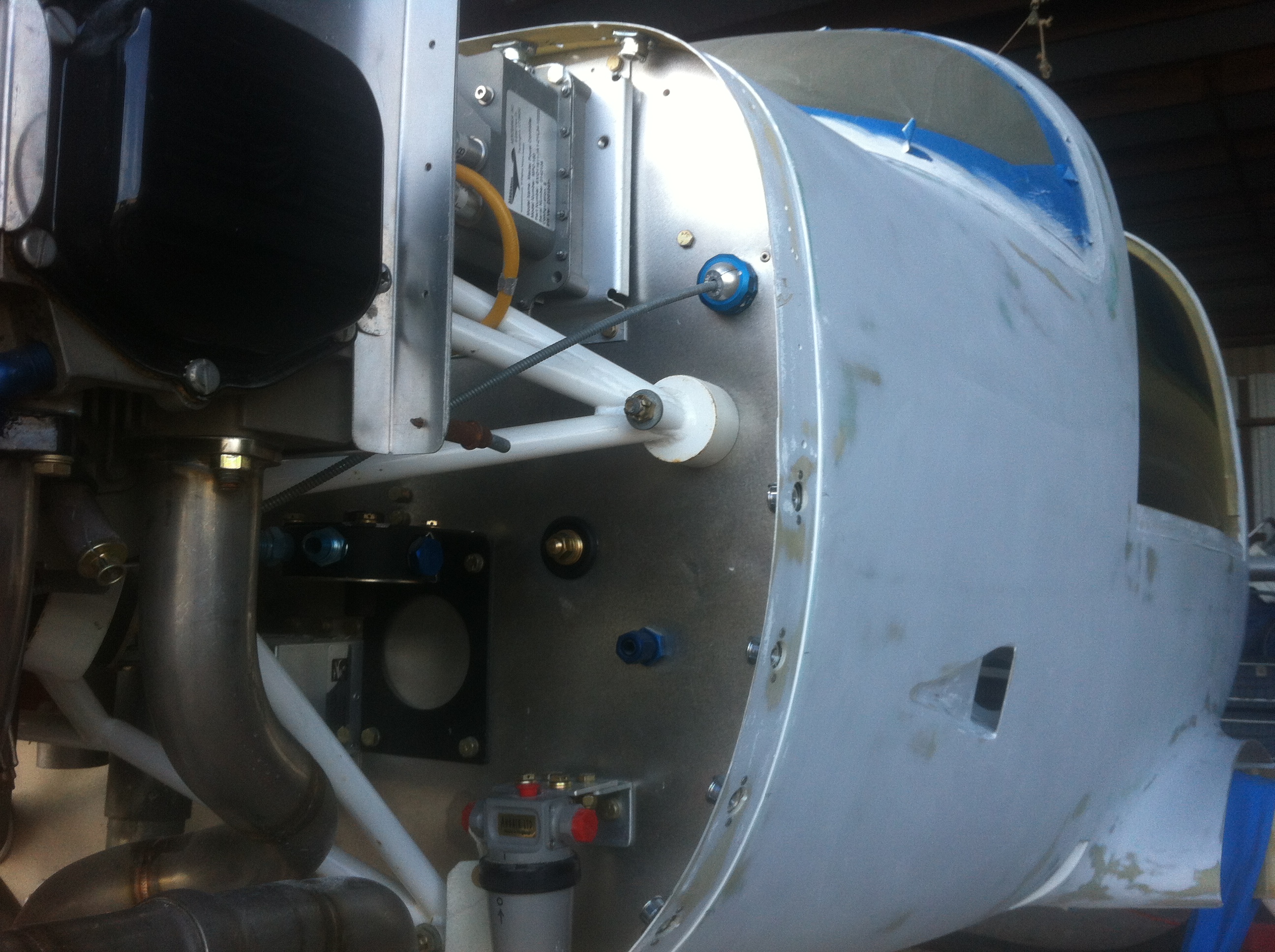

Finding space for everything and keeping clearance between the components and the engine mount required constantly mounting and removing the motor mount.
Firewall Firewall

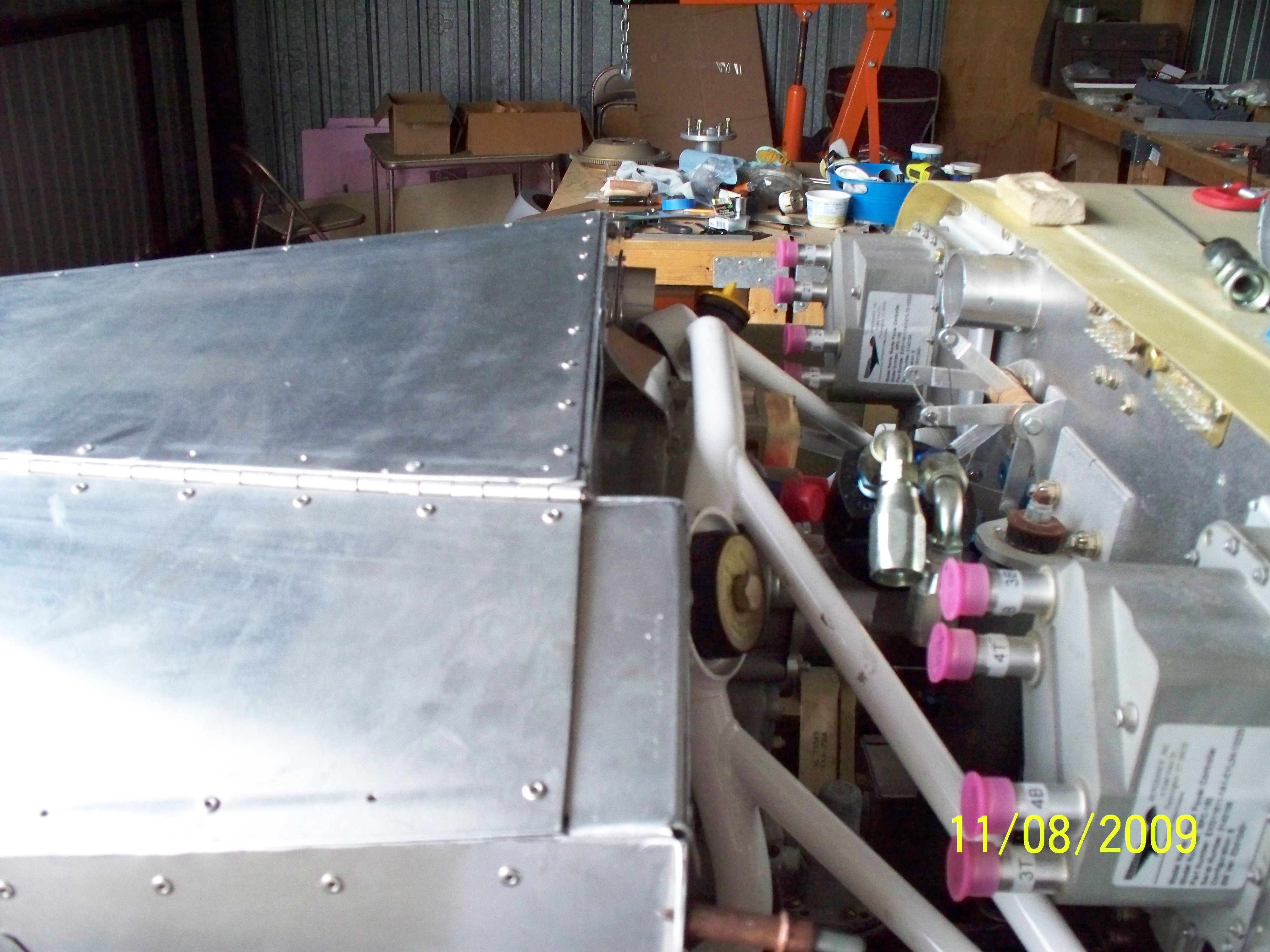

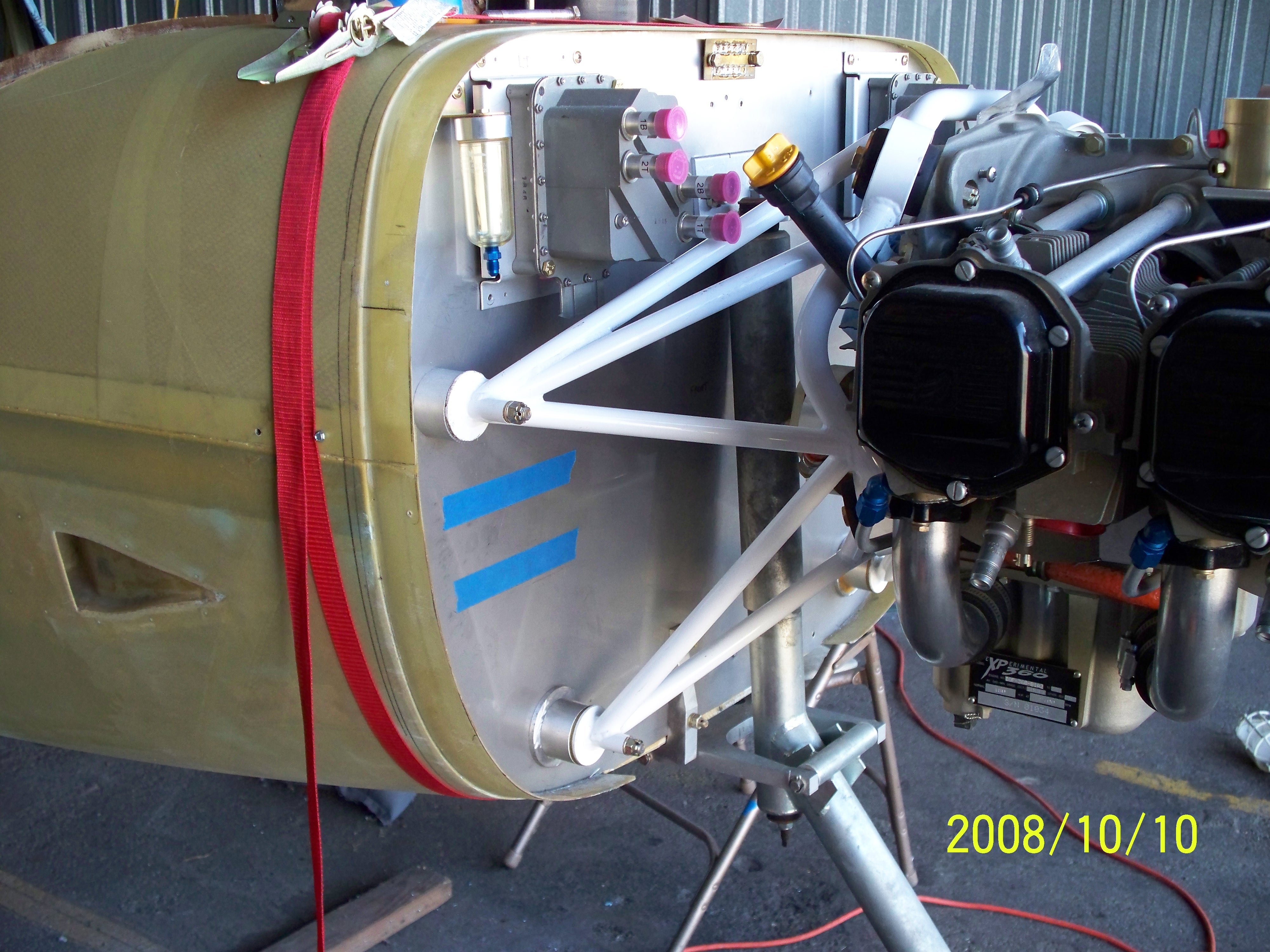

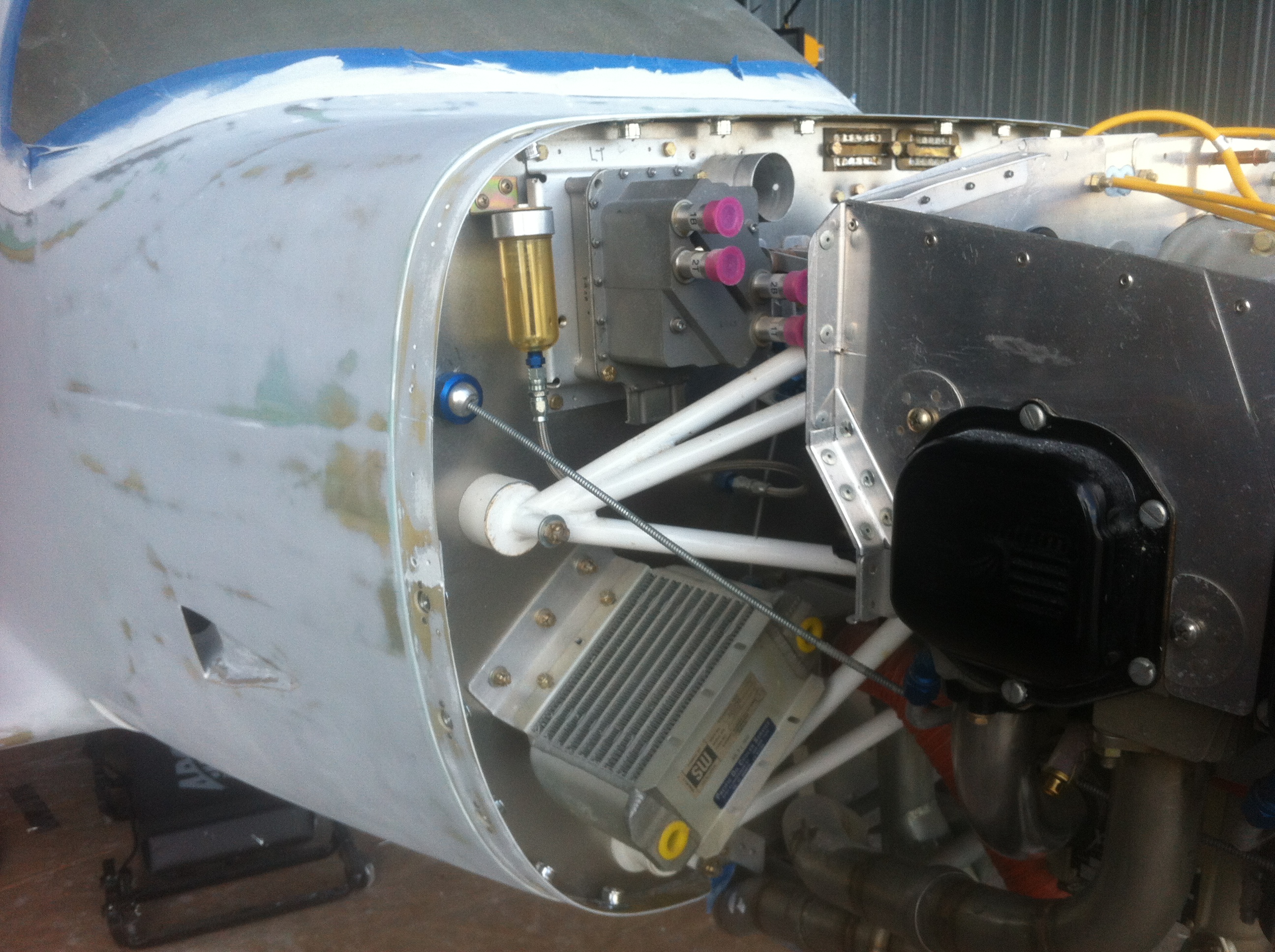

Firewall I had mounted the engine to the engine mount and mounted it multiple times as I located the components on the firewall.  Even with my repeated attempts to locate everything with clearance the final install and wiring resulted in several issues I had not anticipated.
Firewall
 Firewall
Firewall

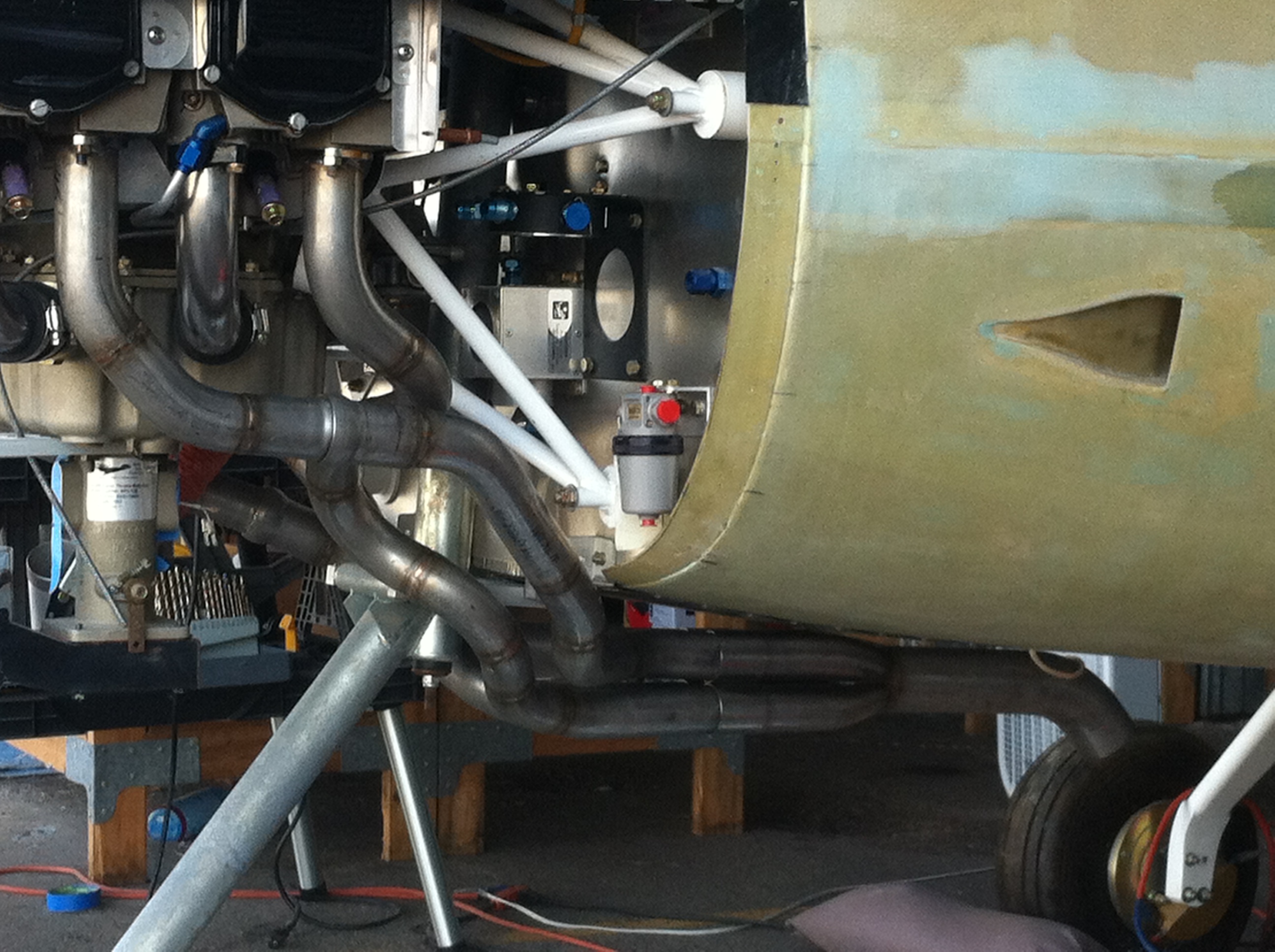

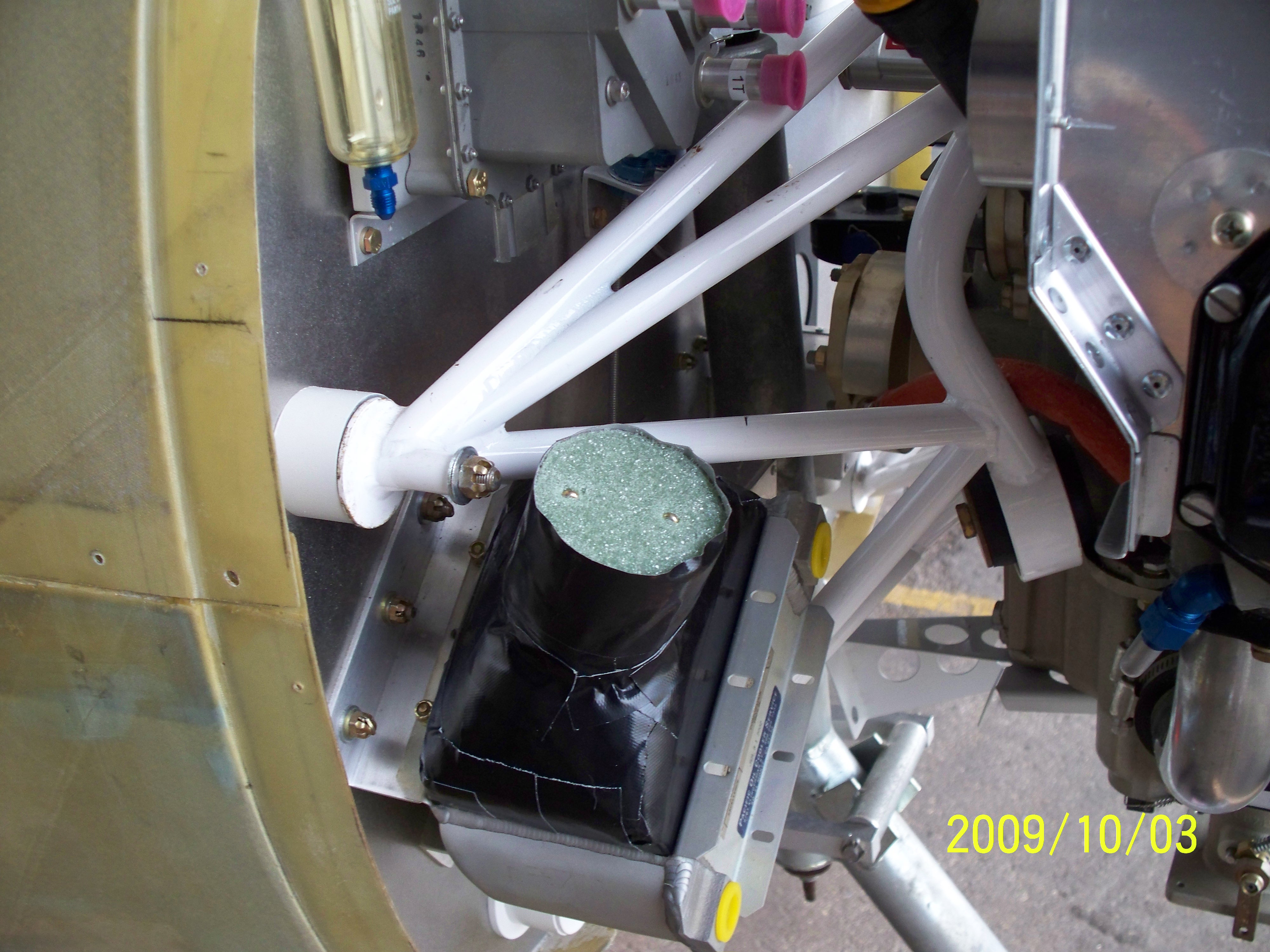

 The clearance between the back of the engine and the firewall was really very tight.  I had already added a one inch spacer to move the engine mount forward an inch and really wish I could have gotten another inch.  I eventuall mounted a second alternator on the vacuum pad and it barely fit.  The air shroud for the oil cooler had to be modified to allow the motor mount rarm to clear.
Firewall
 Firewall
Firewall
 Firewall

Firewall

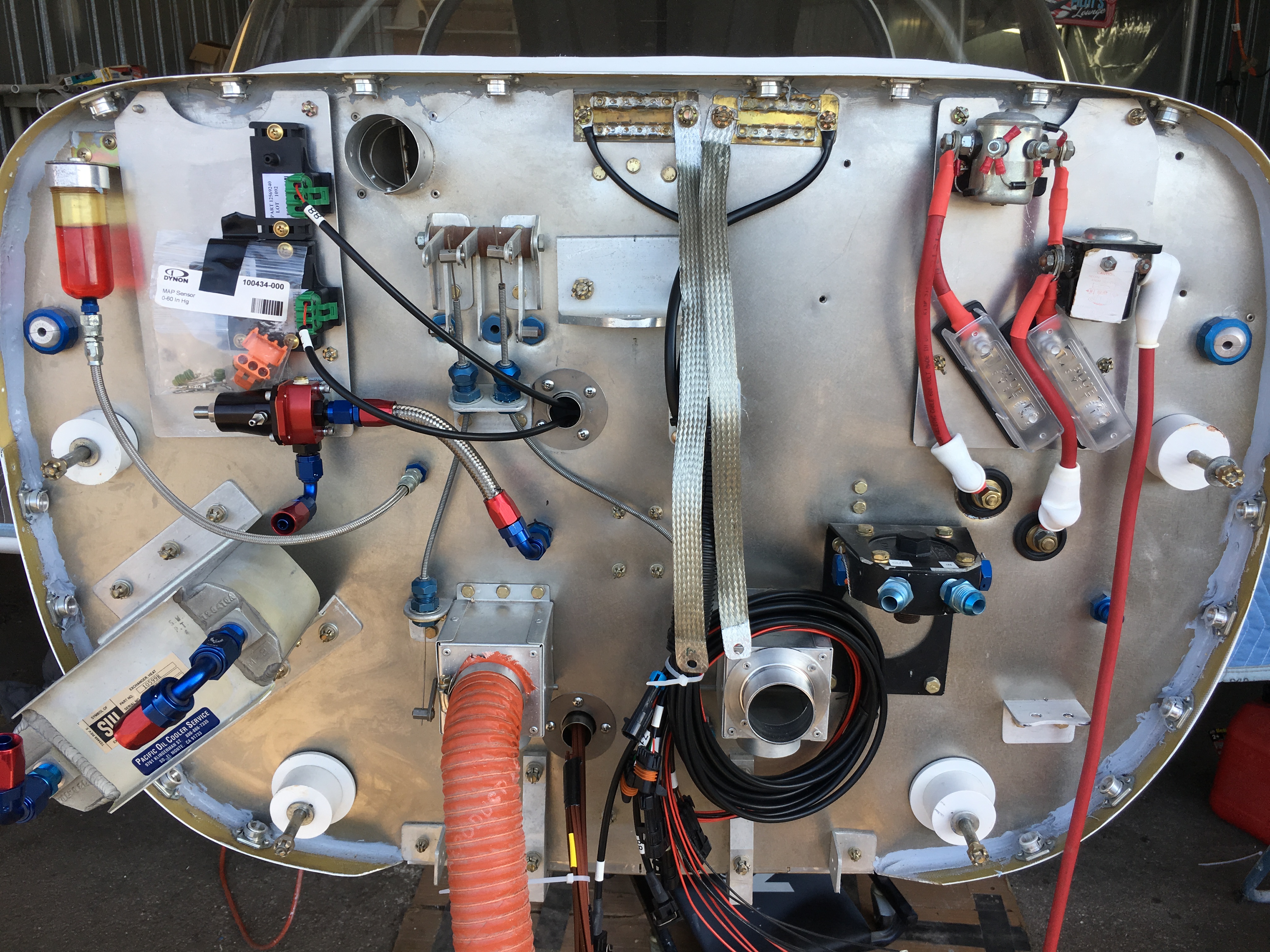

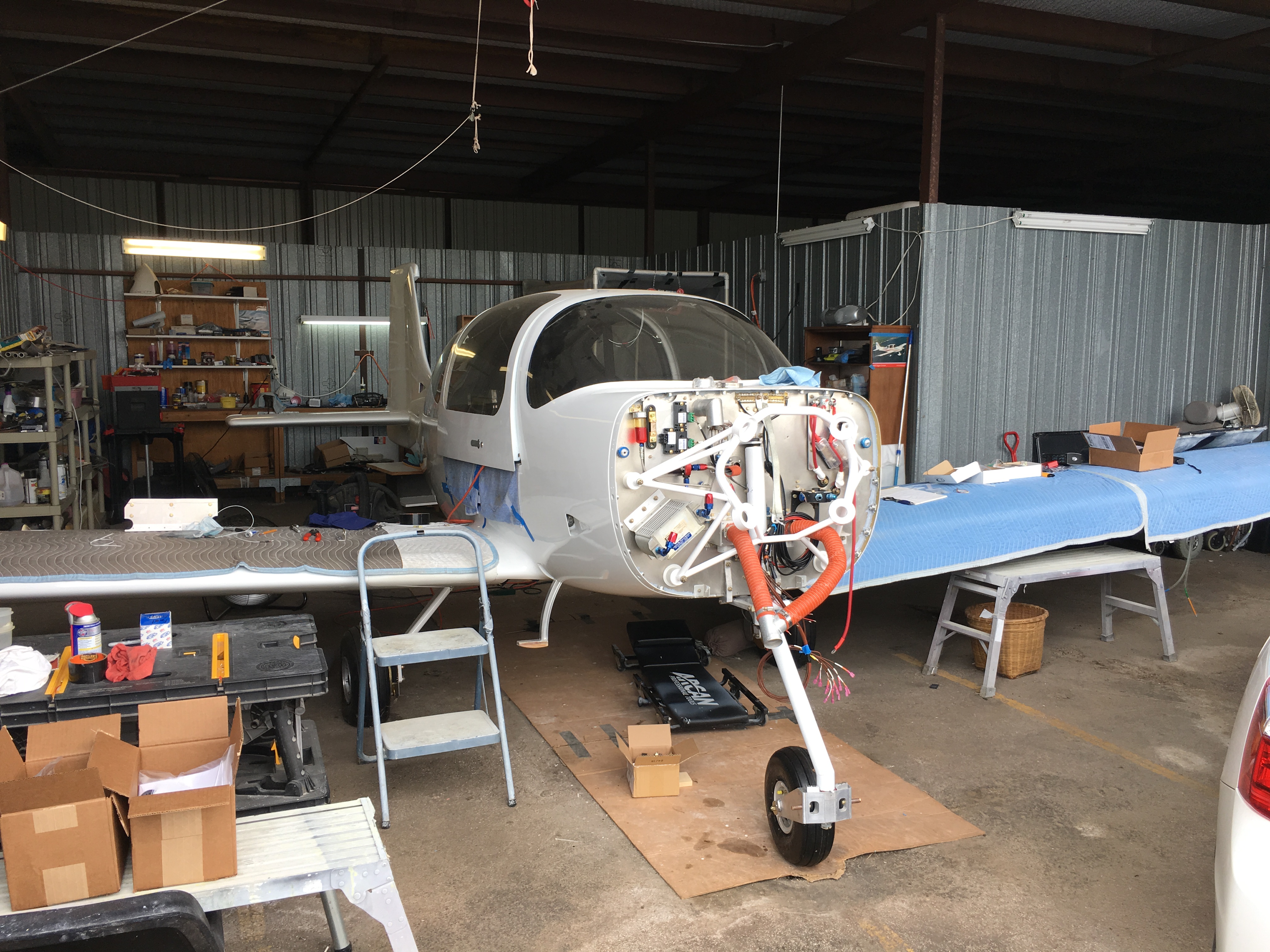

 Skip forward a couple of years and I have made significat changes to the firewall and started some of the wiring.  Most significant change is the removal of the FADEC system which I sold for 10 cents on the dollar.  Support was not available for the FADEC and spare parts were non-existant.  I opted to go with the FLYEFII system which I had started installing.  Much of the visible wiring is for the FLYEFII and for the Dynon EMS system.

The engine has been removed and taken to the shop to be torn down, inspected, and rebuilt with new seals and gaskets.  Despite having sit for over 15 years in the heat, cold, wet and dry the engine was still in great shape with no corrosion.
Firewall
 Firewall
Firewall

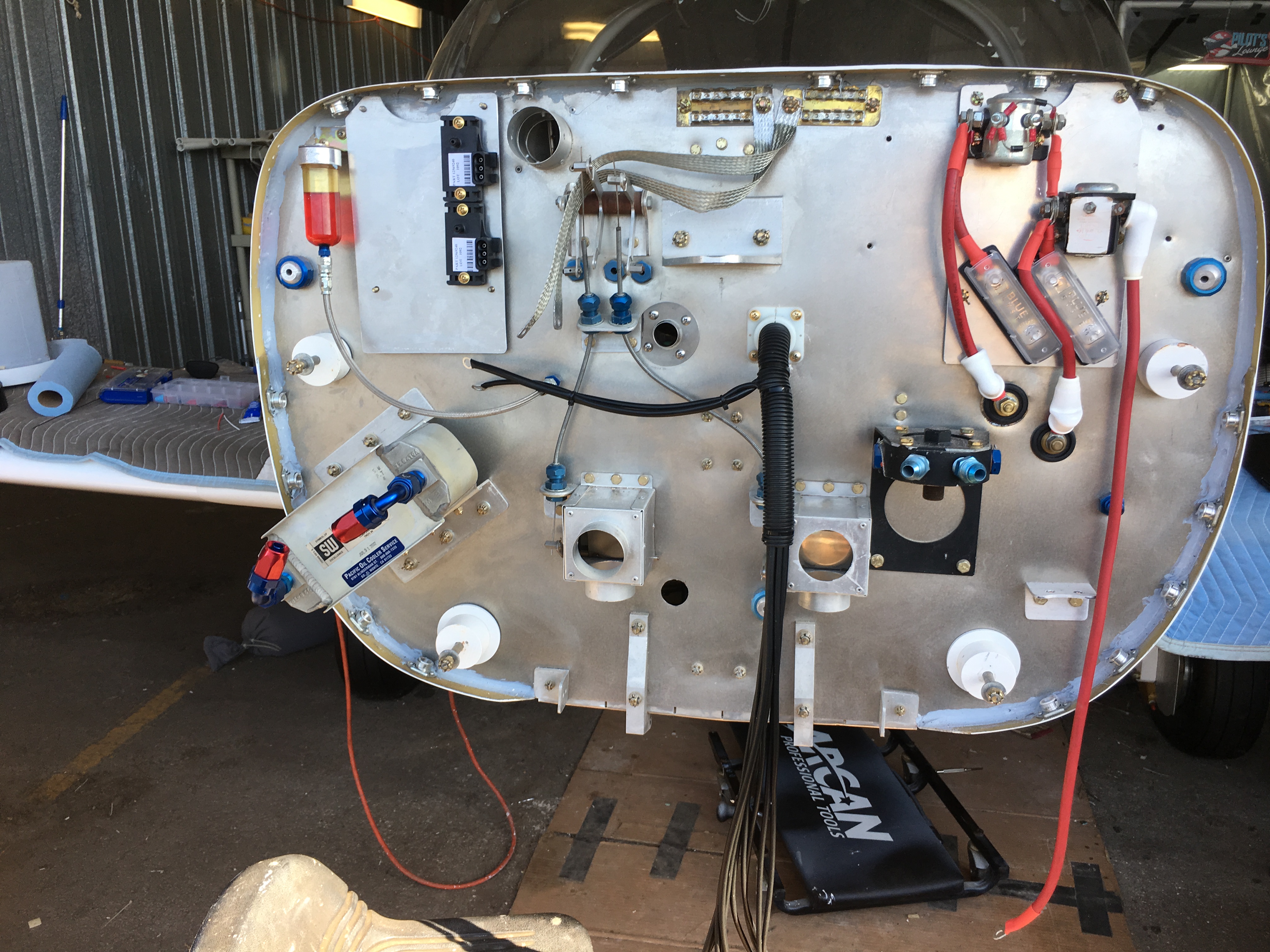

 Ok, I have everything ready for the engine to be reinstalled and waiting for the engine rebuild to be completed.
