Building a KIS Cruiser

FiFuselage Underside Wing Fairings and Gear Cover

by

Bill Schertz

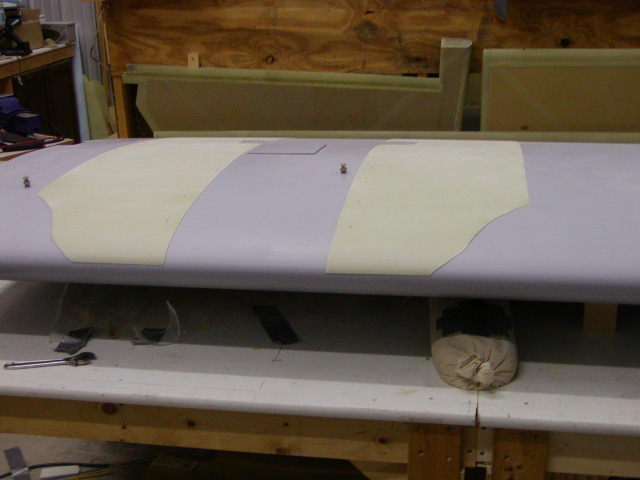

Wing Root fairings are cut from a single sheet and shaped to fit on the underside of the wing. Wing root fairings shown next to each other as cut out.

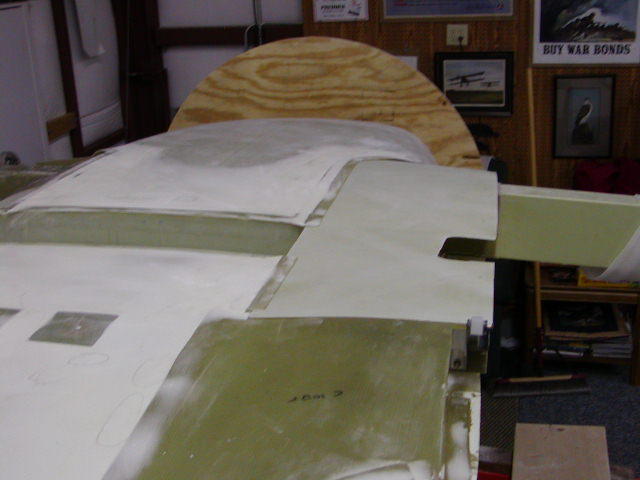

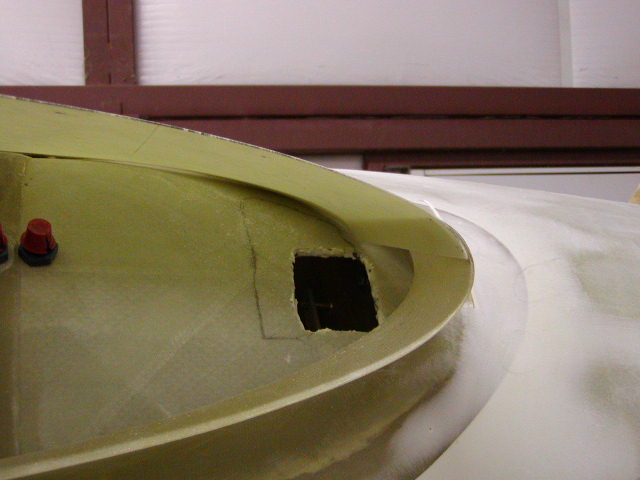

Wing Root fairing shown in place on underside of fuselage. Wing root fairing shown fit under upper wing fairing.

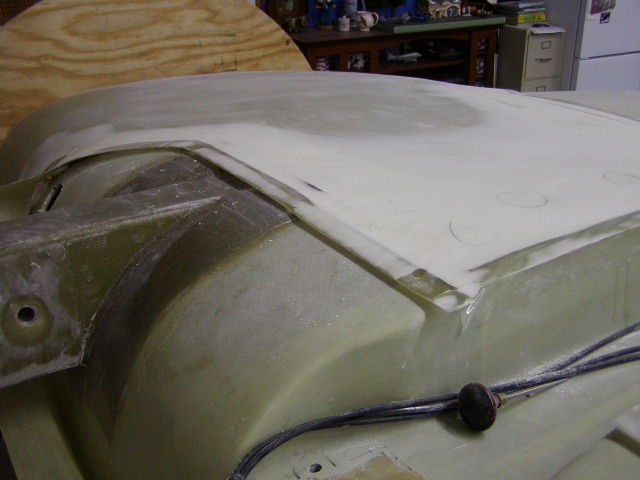

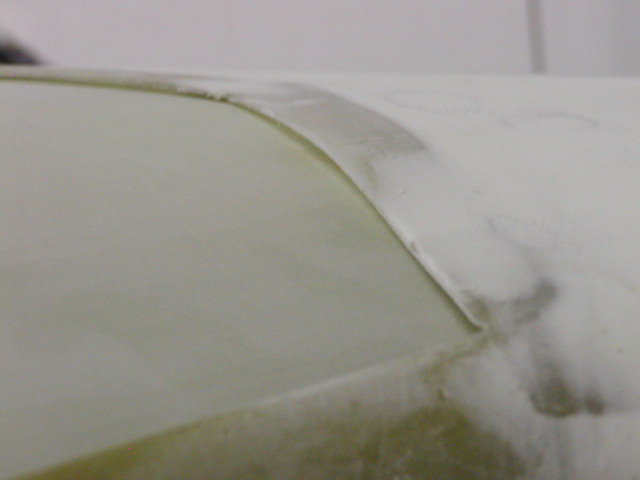

This photo shows a molded overlap for the wing root fairing to slide under and be held in place instead of using screws.   This photo expands on the fairing hold down and how it is feathered into the fuselage bottom.

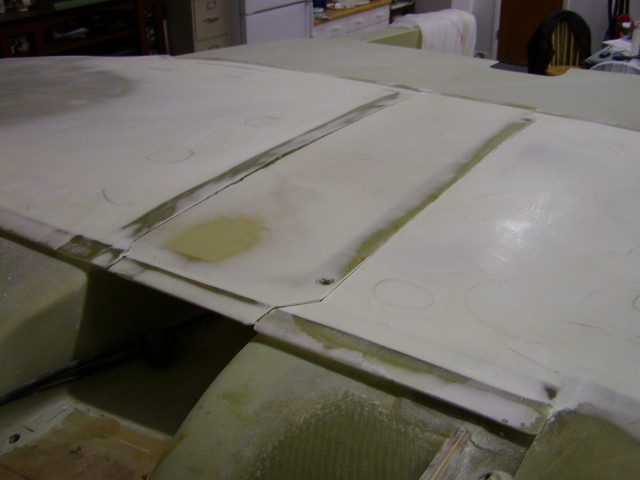

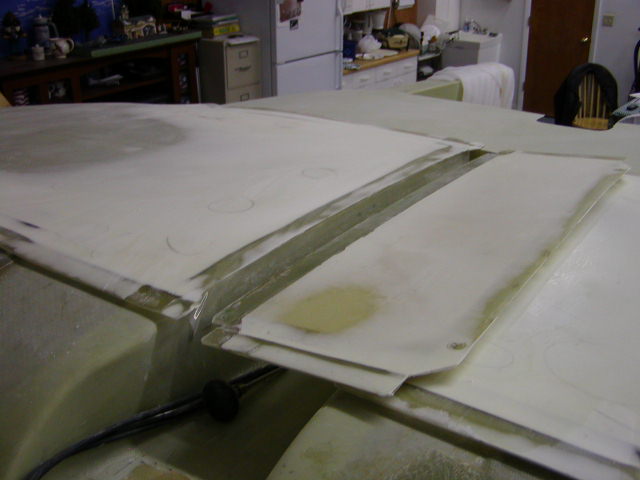

Another glass tab is shown across the fuselage to hold the landing gear cover in place. The landing gear fuselage cover insert is shown in place.
