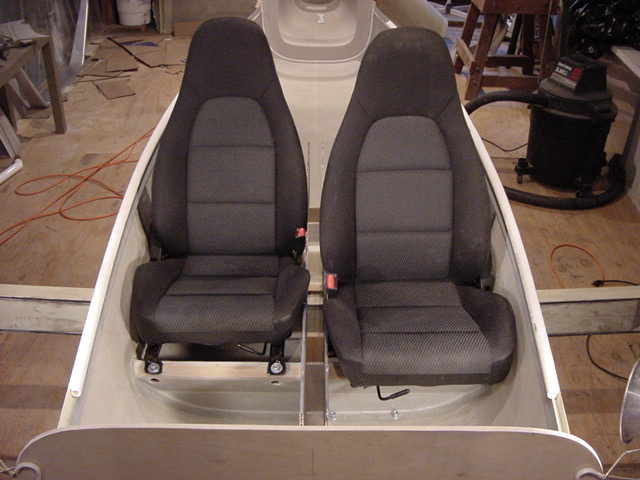

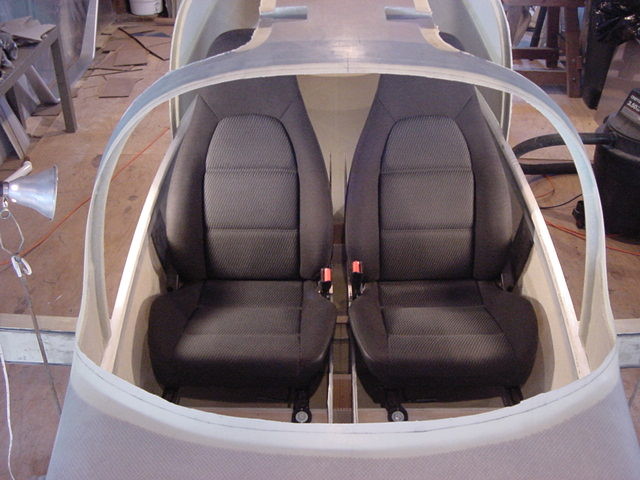

Front seats from a 1999 Miata. No alterations were necessary to the seats but the center console had to be reduced to 2 1/2" OD.

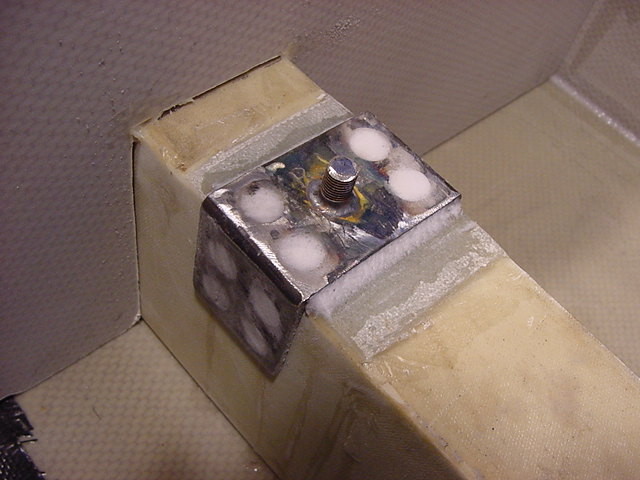

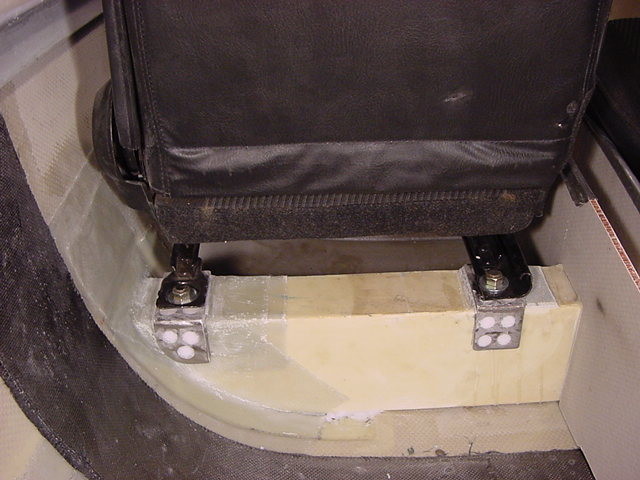

Close up of a wrap-around bolt bracket bonded with flox to the main spar.

Close up of a wrap-around bolt bracket bonded with flox to the main spar.

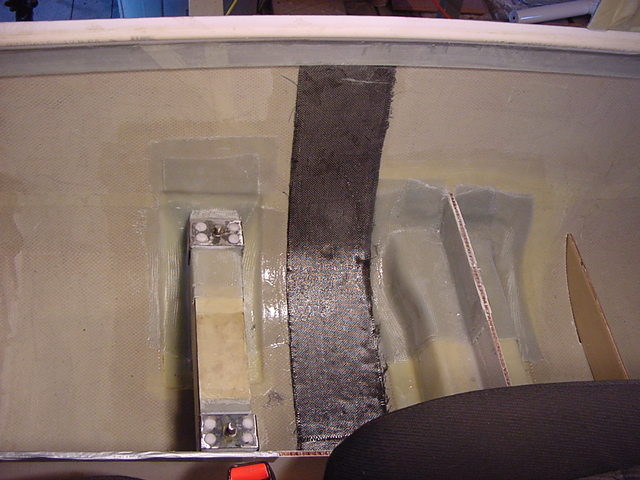

Bolt brackets and graphite belt (15 plies) to stiffen midsection of hull. The beltline conduits will also be layered with graphite to add stiffness.
