Alfred Rosa - TR-4 Builder

Rudder Pedals - Tail Tiedown

(Click on any image for full size view.)

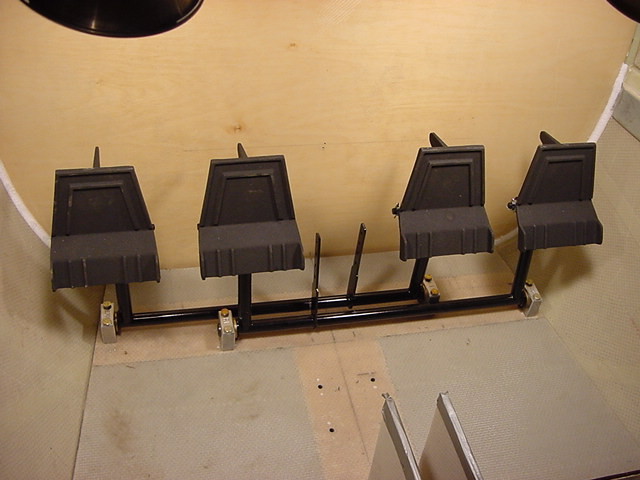

Rudder pedals from ACS with custom made bars of 3/4" x .065 tubing.

Rudder bar bearings are made of solid aluminum with bronze bushings.

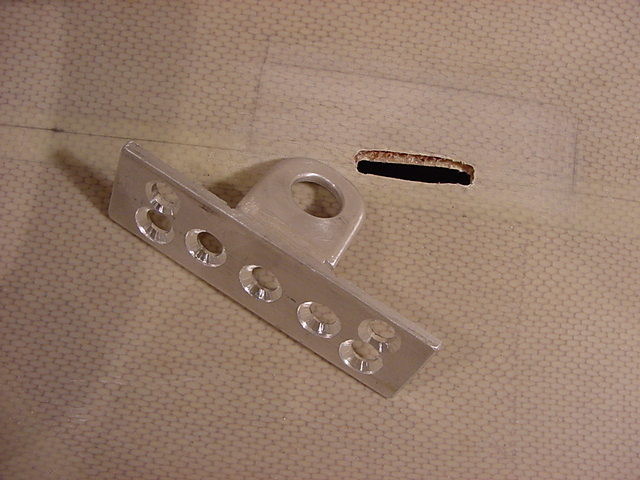

Top Left: Rear tie-down ring fabricated from heavy aluminum angle. Note the countersunk holes drilled for flox bonding.

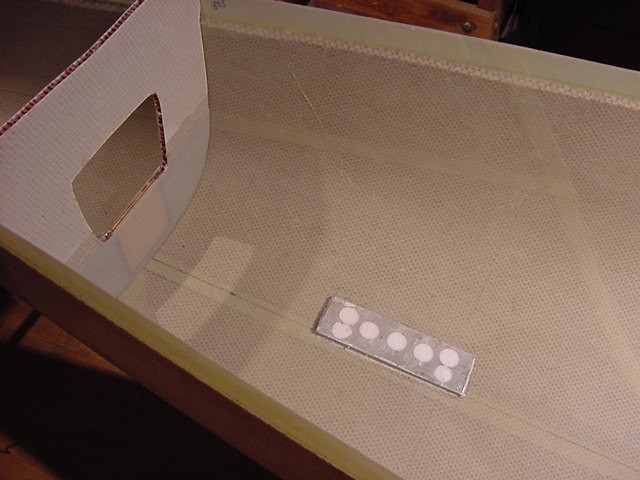

Top:  Ring bracket floxed in place.

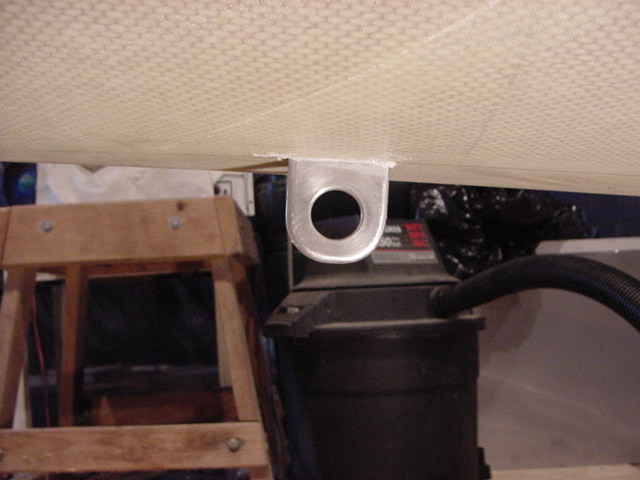

Left:  Tie-down ring from outside.
